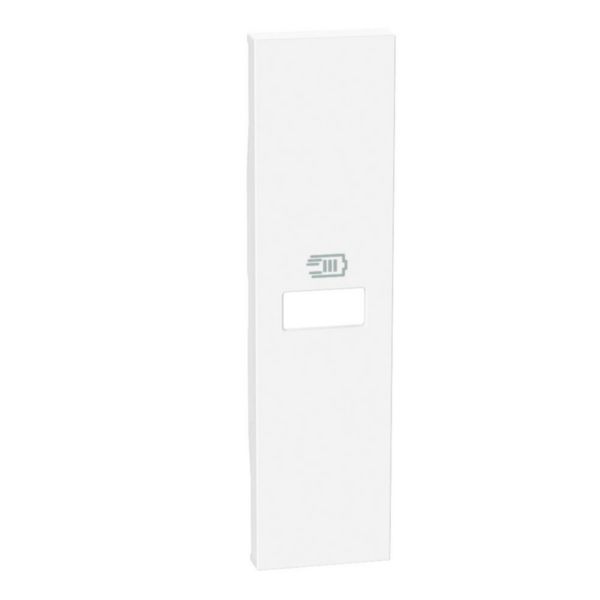

Living Now - CH socket cover, 2 module, white

Name: Living Now - CH socket cover, 2 module, white
SKU: BT-KW11C

Living Now BTICINO

REF. BT-KW11C EAN. 8005543699331

Compare You can only compare 4 products, you must remove 1 to add this one

White technopolymer cover with satin finish and silky feel.
1 module, technopolymer, satin white
Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered

It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.

Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system

It is coordinated with the L.NOW aesthetic
You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device

Model	Central cover plate
Imprint/indication	Other
Scannable symbol/barrier free	No
Utilization	USB
Suitable for touch sensor connector for bus system	No
Type of fastening	Engage (snap)
Monitoring window/light outlet	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Surface protection	Untreated
Surface finishing	Matt

Antimicrobial treatment	No
Colour	White
RAL-number (similar)	9003
With label area	No
With exchangeable lens/symbol	No
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Width	22 mm
Height	86 mm
Depth	7 mm
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C

1 document

Select all

Brochure

BR LIVING NOW_LEG4142.pdf pdf (19.6 Mo)
