Living Now - bronze bell 230Vac 8VA

Living Now BTICINO

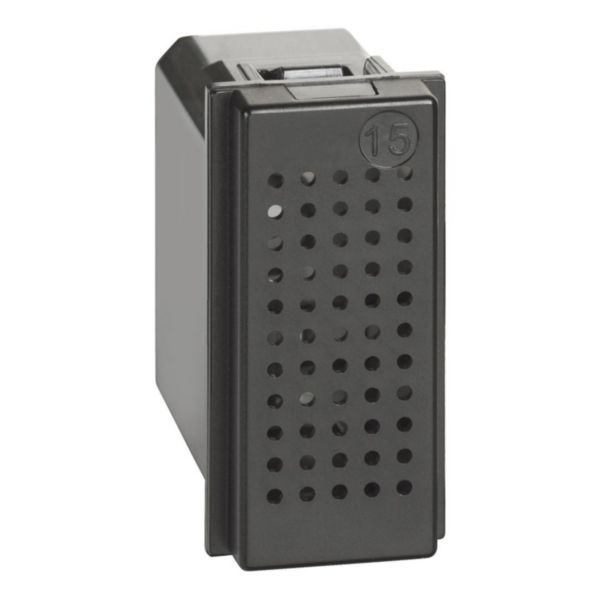

Living Now - bronze bell 230Vac 8VA

REF. BT-K4351V230 EAN. 8005543610305
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • It allows the acoustic signal called from outside the home
  • The device must be completed with the type 15 cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Power supply 230 Va.c. - 12 VA - 80 dB - 1 module
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
  • To be used for acoustic signals outside the house (doorbell outside the door)
Avantages
  • It is coordinated with the L.NOW aesthetic

Technical characteristics

Housing colour Black
Housing material Plastic
Nominal voltage (Min-Max) 230-230 V
Type of current AC
Built-in battery No
Electricity consumption (Min-Max) 8-8 A
Connection type Screwed terminal
Loudness 80 dB
Wireless No
Degree of protection (IP) IP21
Mounting method Modular device for domestic switching devices
Number of modules (module system) 1
Width in number of modular spacings 22.3
Width 22 mm
Height 45 mm
Depth 42 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-35 °C
Frequency (Min-Max) 50-60 Hz
Terminal marking indication No
RAL-number 7015
Halogen free Yes
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Label space/information surface No
With complemantary luminous signal No
Contains Batteries and/or Accumulator No
Number of ringtones 1
Connected object No

Documentation

1 document
Catalogue Commercial Page
ex223001_0776.pdf pdf (0.14 Mo)
