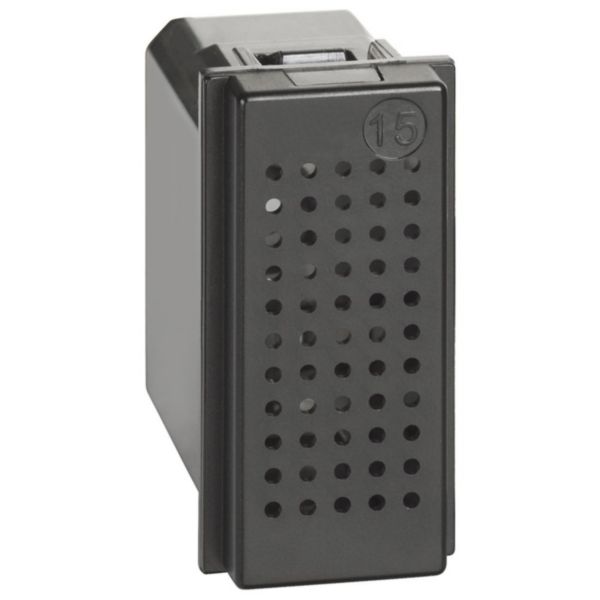

Living Now - BRONZE BELL 12VAC 8VA

Name: Living Now - BRONZE BELL 12VAC 8VA
SKU: BT-K4351V12

Living Now BTICINO

REF. BT-K4351V12 EAN. 8005543647035

Compare You can only compare 4 products, you must remove 1 to add this one

Designed for acoustic signalling applications, suitable for use as a doorbell in residential environments
Requires completion with type 15 cover for full installation compatibility
Equipped with screw and plate terminals supporting 1.5mm² to 2.5mm² flexible or rigid cables for secure electrical connections
Features a new generation plastic hooking system enabling rapid installation and removal from the support frame
Operates at 12VAC, 8VA, delivers 80dB sound output, and fits a single 22mm module with IP21 protection

Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.

Housing colour	Black
Housing material	Plastic
Nominal voltage (Min-Max)	12-12 V
Type of current	AC
Built-in battery	No
Electricity consumption (Min-Max)	5-5 A
Connection type	Screwed terminal
Loudness	80 dB
Wireless	No
Degree of protection (IP)	IP20
Mounting method	Flush-mounted
Number of modules (module system)	1
Width in number of modular spacings	22.3
Width	22 mm
Height	45 mm
Depth	42 mm

degree of impact strength (IK)	IK04
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-5-35 °C
Frequency (Min-Max)	50-60 Hz
Terminal marking indication	No
RAL-number	7015
Halogen free	Yes
Antimicrobial treatment	No
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Label space/information surface	No
With complemantary luminous signal	No
Contains Batteries and/or Accumulator	No
Number of ringtones	1
Connected object	No
