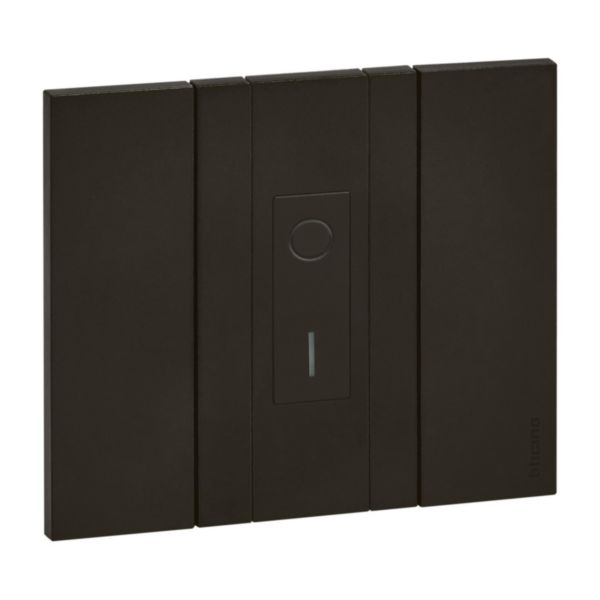

Name: Living Now - 2P switch, 16AX, 1 module, black
SKU: BT-KG4002

Living Now - 2P switch, 16AX, 1 module, black

Living Now BTICINO

Living Now - 2P switch, 16AX, 1 module, black

REF. BT-KG4002 EAN. 8005543611869

Compare You can only compare 4 products, you must remove 1 to add this one

Rocker mechanism to indicate the load status
The device must be completed with the KW02 cover
Screw and plate terminals
Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
16 AX, 250 Va.c. 2P Can be fitted with signaling LED

Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.

Wiring system	Switch 1-pole
Method of operation	Rocker/button
Assembly arrangement	Modular device for domestic switching devices
Number of modules (module system)	1
Push button switch	Yes
Number of rockers	1
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
With mounting plate	No
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Matt
Colour	Black
RAL-number (similar)	7015
Colour of switch operator	Black
Label space/information surface	No
Imprint/indication	None
Lighting	Optional
Function lighting	Orientation
Type of lighting	LED exchangeable
Suitable for degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Nominal voltage	250 V

Rated current	16 A
Switching current for fluorescent lamps	16 AX
Monitoring contact	No
Connection type	Screwed terminal
Heating switch	No
Washing machine switch	No
Device width	22 mm
Device height	45 mm
Device depth	41 mm
Built-in depth	28 mm
Min. depth of built-in installation box	38 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Compliant with UK Building Regulations Part M	No
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC
Frequency (Min-Max)	50-60 Hz
Mandatory neutral	Yes
Terminal marking indication	No
Terminals capacity (Min-Max)	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	1.5-2.5 mm²

Living Now - 2P switch, 16AX, 1 module, black
