Living Now - 2-module universal push-button dimmer

Living Now BTICINO

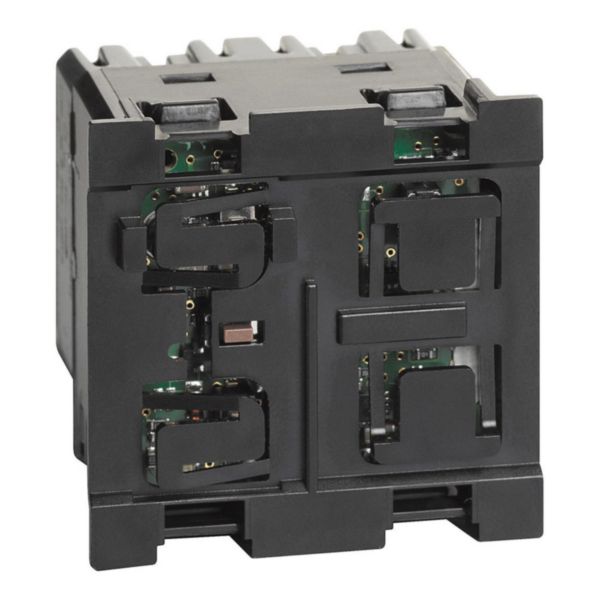

Living Now - 2-module universal push-button dimmer

REF. BT-K4411 EAN. 8005543614419
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Light intensity memory function : the light turns on at the same light intensity as when it was turned off.

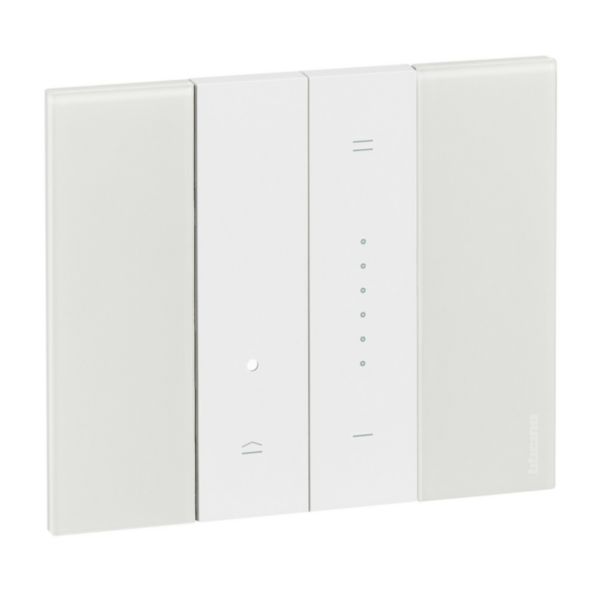

  • The device must be completed with the type 19 cover
  • Screw and plate terminals
  • Easy installation and removal of the mechanism on the support frame thanks to the new generation of plastic hooking system
  • Used to control dimmable LED loads, dimmable FCL, very low voltage halogen (TBT), 230V halogen and incandescent. Powered to 100-230 Va.c.
Recommendation / Restriction
  • For internal use only.

The product's benefits

Installation
  • It can be associated with one or more push buttons, allowing to activate / deactivate and dim the load.Dimmer without neutral to allow Retrofit installations.
Usage
  • The ideal solution to adapt the light intensity of an environment to your needs.
Avantages
  • It is coordinated with the L.NOW aesthetic, taking advantage of the full touch ergonomics of the control: it can be activated by pressing the control at any point on its surface (above, below and in the middle)
  • Suitable for all LED light loads included

Technical characteristics

Assembly arrangement Basic element with central cover plate
Method of operation Push button
Number of modules (module system) 2
App control via Bluetooth No
Dimming phase cut-on (leading edge) No
Dimming phase cut-off (trailing edge) No
Serial dimmer Yes
Type of load Universal
Substation input No
Light value memory No
Applicable with button Yes
Applicable with movement sensor No
Applicable with presence indicator No
Applicable with time switch/timer No
Applicable with transmission button No
Applicable with infrared button No
Mounting method Module frame
Type of fastening Other
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Colour Black
RAL-number (similar) 7015
Transparent No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 100-240 V
Frequency 50-60 Hz
Control voltage 0-10 V
Connection type Screwed terminal
Cable section 1.5-2.5 mm²
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Built-in depth 35 mm
Operating / setting temperature 0-35 °C
Storage temperature -10-70 °C
Voltage type AC
Mandatory neutral No
Terminal marking indication No
Stress test conformity (1000V) No
Antimicrobial treatment No
Terminals capacity 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
