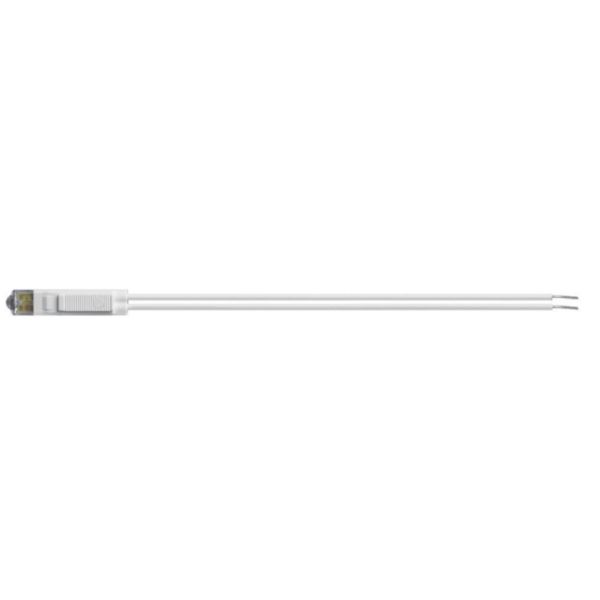

Living Now - 127V high intensity LED lamp, white light

Name: Living Now - 127V high intensity LED lamp, white light
SKU: BT-K4743V127T

Living Now BTICINO

REF. BT-K4743V127T EAN. 8005543655887

Compare You can only compare 4 products, you must remove 1 to add this one

The LED connection takes place without tools by connecting it directly to the terminals of the mechanism.

LED Indicator of white color, perfect identification of the control and its status or inserted on our lampholder to give a luminous signaling.

Transformer integrated	No
With integrated voltage decreasing resistor	Yes
With light source	Yes
With integrated diode	Yes
Lamp holder	None
Rated voltage Ue at AC 50 Hz (Min-Max)	125-127 V
Rated voltage Ue at AC 60 Hz (Min-Max)	125-127 V
Voltage type for actuating	AC
Lamp type	LED
Connection type auxiliary circuit	Screw connection
Colour light source	White
Type of fastening	Floor fastening

Width	6 mm
Height	28.5 mm
Depth	6 mm
Degree of protection (IP)	Not applicable
Operating / setting temperature (Min-Max)	-5-35 °C
Storage temperature (Min-Max)	-10-70 °C
Supply current (Min-Max)	0.00095-0.00098 A
Frequency (Min-Max)	50-60 Hz
Stress test conformity (1000V)	No
Halogen free	Yes
Prewired	Yes
