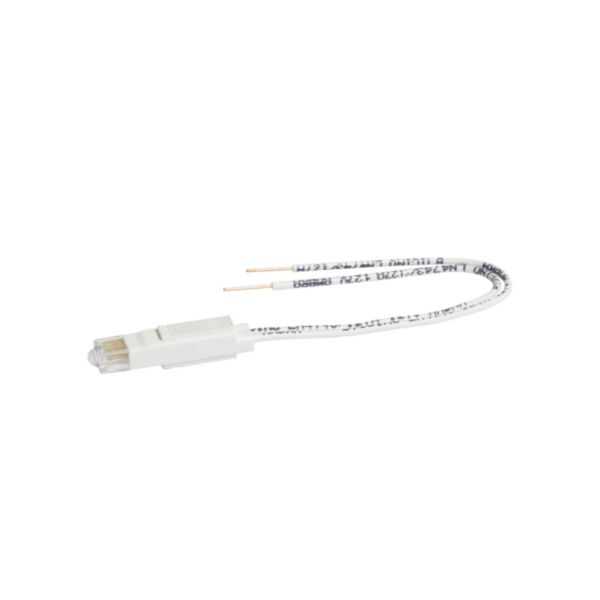

Living Light - LED lamp ASSIALI 230V white

Living Light BTICINO

Living Light - LED lamp ASSIALI 230V white

REF. BT-LN4743/230T EAN. 8005543567906
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • LED indicator module for axial controls, rated for 230V AC Livinglight systems
  • White LED light source ensures clear visual indication and modern aesthetic
  • Rated voltage range 127V to 240V AC, suitable for 50/60Hz operation
  • Ingress protection rating IP55 for enhanced resistance to dust and water
  • Screw terminal connection for secure and reliable auxiliary circuit integration

Technical characteristics

Transformer integrated No
With integrated voltage decreasing resistor Yes
With light source Yes
With integrated diode Yes
Lamp holder None
Rated voltage Ue at AC 50 Hz (Min-Max) 127-240 V
Rated voltage Ue at AC 60 Hz (Min-Max) 127-240 V
Voltage type for actuating AC
Lamp type LED
Connection type auxiliary circuit Screw connection
Colour light source White
Type of fastening Other
Width 50 mm
Height 55 mm
Depth 50 mm
Degree of protection (IP) IP55
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) 5-40 °C

Documentation

1 document
Technical Sheet
lDP001636_01-EN.pdf pdf (0.3 Mo)
2 documents
Brochure
Catalogue Commercial Page
ex223001_0776.pdf pdf (0.14 Mo)
