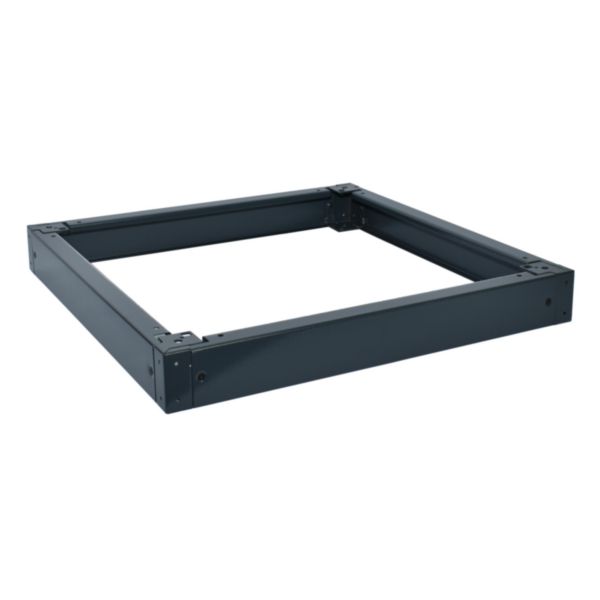

Linkeo plinth for cabinets width 600 mm x depth 1000 mm

Linkeo LEGRAND

Linkeo plinth for cabinets width 600 mm x depth 1000 mm

REF. 646402 EAN. 3245066464022
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Height 100mm
  • Plinth fixed using M12 screws. Traps fixed using zinc - plated M6 screws.
  • Corner blocks made of 2 mm thick steel + paint (same as cabinets)
  • Traps 1.5 mm thick steel + paint with double fold reinforcement on floor side
  • Anthracite grey RAL 7016 (same as the cabinets)
Recommendation / Restriction
  • servent à surélever la baie afin depermettre une arrivée par le bas des câbles, notamment quand sol "dur" (pas de faux plancher pour faire cheminer les cables) lover/stocker une longueur de cable excedentairefaire cheminer les cables entre 2 baies associéesprotéger le base de la baie en cas de sol potentiellement humide/sale

The product's benefits

Installation
  • Supplied with complete set of screws for the equipotential link with the cabinet. Can be fixed to the floor (screws not supplied).
Usage
  • Possibility to place 2 plinths one on top of the other.
Avantages
  • Uniformity of the structure : the plinths are the same colour as the cabinets

Technical characteristics

Model Base complete
Material Steel
Colour Grey
Suitable for enclosure building width 600 mm
Suitable for enclosure building depth 1000 mm
Suitable for aeration/de-aeration No
Suitable for cable patch Yes
Width 600 mm
Height 100 mm
Depth 1000 mm

Documentation

5 documents
Instruction Use
LE09826AA-02.pdf pdf (1.38 Mo)
Technical Sheet
F02420EN-01.pdf pdf (2.28 Mo)
Technical Sheet
F02421FR-01.pdf pdf (2.29 Mo)
Instruction Use
LE09825AA-03.pdf pdf (1.09 Mo)
Technical Sheet
F02420FR-01.pdf pdf (2.28 Mo)
2 documents
Catalogue Commercial Page
ex223001_0944.pdf pdf (0.14 Mo)
Catalogue Commercial Page
ex223001_0943.pdf pdf (0.07 Mo)
