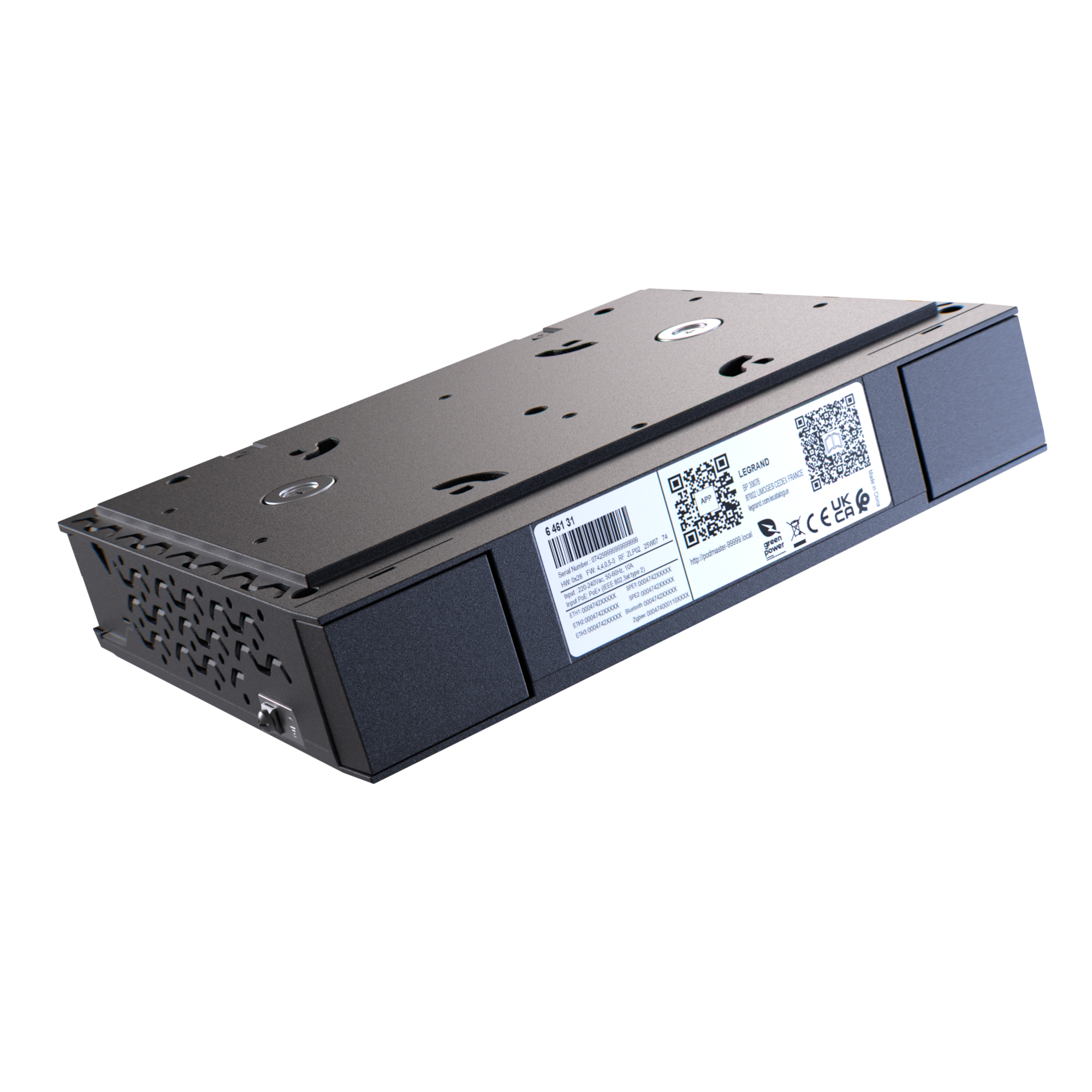

Linkeo DC - Pod Master - Wireless energy measurement gateway - Zigbee/Bluetooth connectivity - Embedded web server

Linkeo DC Legrand

Linkeo DC - Pod Master - Wireless energy measurement gateway - Zigbee/Bluetooth connectivity - Embedded web server

REF. 646131 EAN. 3414972979320

Collect and control up to 60 inverters with 240 wireless or wired sensors or actuators. Features bidirectional radio frequency, embedded web server, TCP/IP protocol, energy measurement, updateable firmware, and LED indication.

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Collect and control up to 60 inverters with 240 wireless or wired sensors or actuators. Features bidirectional radio frequency, embedded web server, TCP/IP protocol, energy measurement, updateable firmware, and LED indication.

Product characteristics
  • Embedded Web User Interface with DCIM-agnostic architecture and open API platform, supporting TCP/IP protocol and remote configuration via PodView application.

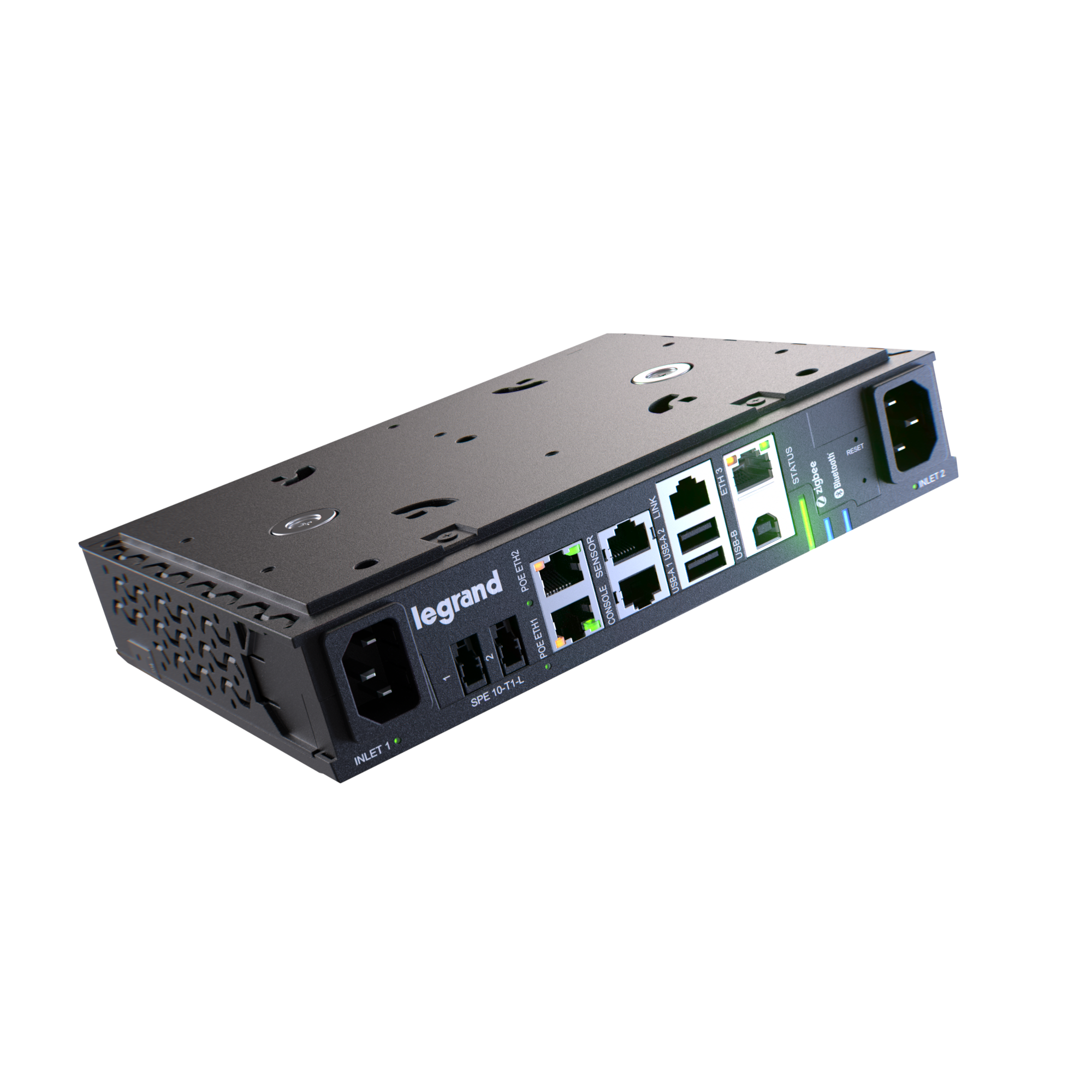

  • Comprehensive connectivity featuring 2xRJ45 Ethernet 10M/100M/1000M ports, 2xSingle Pair Ethernet ports, Zigbee 3.0 mesh network, and Bluetooth for robust device integration.
  • Versatile I/O options including 1xRJ45 sensor port, 1xRJ45 console port, 2xUSB-A ports, 1xUSB-A port, 1xRJ45 Link port, and 1xRJ45 Ethernet 10M/100M port, enabling flexible sensor and peripheral connections.
  • Dual AC and PoE+ power supply with 2 x IEC C14 inlets and 2 x PoE+ Ethernet ports, supporting 90to264V AC input for reliable operation in diverse environments.
  • High ambient temperature rating up to 60°C, with IP2X protection and IK04 impact strength, ensuring durability in demanding industrial settings.

The product's benefits

Installation
  • Fast deployment thanks to Zigbee radio technology (no cable routing required) and the mobile application to guide you during commissioning. Pod Master offers also versatile mounting possibilities. It embeds two magnets for tool- and accessory-free integration in metal cabinets. Other mounting accessories can be ordered separately as 19inches 1U panel (CatNo 6 461 35), Cablofil adaptor (CatNo 0 919 38), P31 adaptor (CatNo 0 919 48) and universal brackets (CatNo 6 461 38).
Avantages
  • Secure solution. Zigbee 3.0 uses a mesh network topology, which allows devices to relay signals to one another. It automatically discovers and establishes the most efficient communication routes between devices. If a device or communication path fails, the network dynamically reroutes data through alternative paths, ensuring continuous operation without manual intervention.
  • Resource-efficient solution. No longer need for displays on PDUs paired with the Pod Master thanks to the mobile application. No longer need for patch cords to daisy-chain PDUs thanks to the Zigbee radio communication.
  • PodView application for mobile devices to make on-field commissioning and monitoring easy.

Technical characteristics

Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems None
Radio frequency bidirectional Yes
Model Ethernet interface
Mounting method Other
Number of channels 1
Max. number of devices per channel 60
Demounting protection No
With LED indication Yes
Updateable Yes
Operating voltage (Min-Max) 90-264 V
Voltage type AC
Power consumption 10 W
Protocol TCP/IP
Provider dependent No
Visualization No
Web-Server Yes
Radio interface Yes
IR interface No
Degree of protection (IP) IP2X
Width 177.1 mm
Height 43.5 mm
Depth 218.7 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-60 °C
Storage temperature (Min-Max) 0-70 °C
Terminal marking indication No
Type of load Not applicable
Halogen free Yes
Connection type Not applicable , Not applicable
Label space/information surface No
Fitted with USB plug Yes
Contains Batteries and/or Accumulator No
Addressable Yes
Connected object Yes
Operating method Bluetooth , Modbus , Network , Zigbee
Application store for download Google Play Store
With voice command No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Product use function Energy measurement and metering
Application name PodView
Programming way Web software
