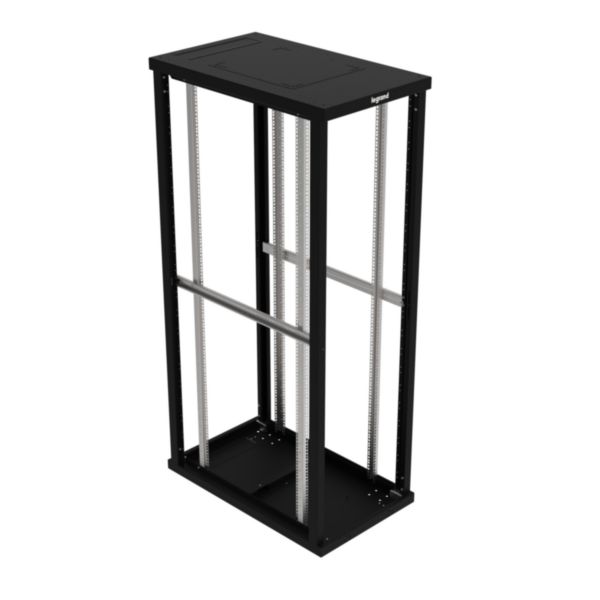

Linkeo 19 inches freestanding cabinet 42U 800x1000mm without doors side panels and tilting bar

Name: Linkeo 19 inches freestanding cabinet 42U 800x1000mm without doors side panels and tilting bar
SKU: 446822

Linkeo LEGRAND

REF. 446822 EAN. 3414972027342

Compare You can only compare 4 products, you must remove 1 to add this one

Capacity 42U, dimensions (HxWxD) : 2052 x 800 x 1000mm
Delivered without doors, side panels and tilting bar
Galvanised metal structure provides IP20 (protected against solid objects larger than 12.5 mm in diameter)
Equipped with 4 x 19 inches uprights with U marking and adjustable depth
Black RAL 9005

The whole structure stands on 4 levelling feet that can be adjusted from the floor. It can be completed with a set of 4 casters (ref. 446880) to ease the move of the cabinet. Cut-out at the top to install fan kit (ref. 446901, 446902, 446903 or 446904). Delivered ready-assembled.

Pre-cut cable entries (top and bottom) to facilitate cable management. Equipped with 4 x 19 inches uprights with U marking and adjustable in depth.

Protected against solid objects larger than 12.5 mm (IP20), according to EN61587-1, IEC60529.

Rear door locking system	None
With glazed door	No
With sidewall	No
With base	No
With vertical cable management	No
Material	Steel
Surface finishing	Powder coating
Colour	Black
Model	With permanent frame
RAL-number	9005
Demountable	Yes
Degree of protection (IP)	IP20
Degree of protection (NEMA)	Other
degree of impact strength (IK)	IK02
Operating / setting temperature	-25-70 °C

2 documents

Select all

Technical Sheet

F03351EN-00.pdf pdf (2.63 Mo)

Technical Sheet

F03351FR-00.pdf pdf (2.55 Mo)

2 documents

Select all

Catalogue Commercial Page

ex223001_1031.pdf pdf (0.11 Mo)

Catalogue Technical Page

ex223001_1035.pdf pdf (0.04 Mo)
