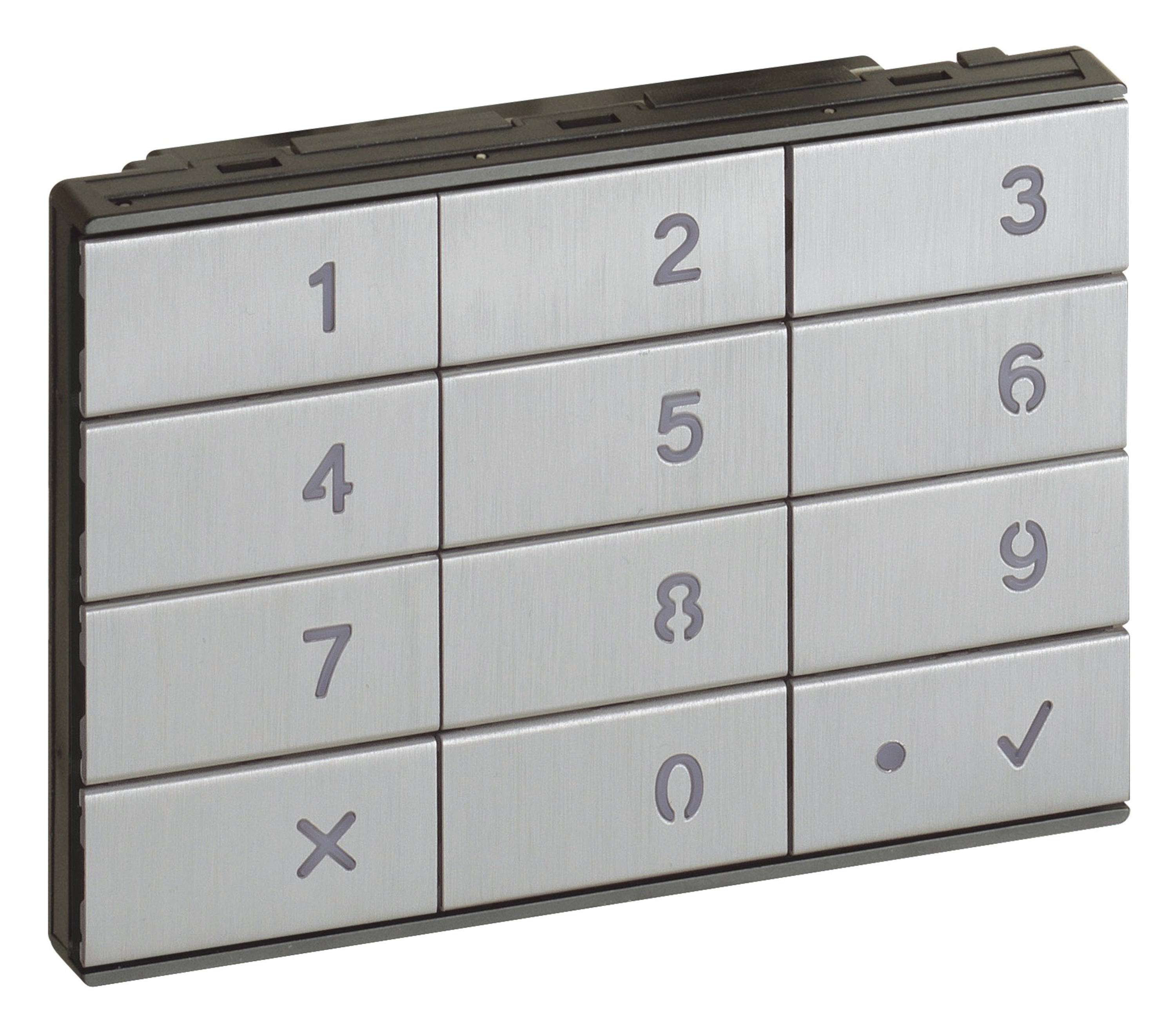

Name: Linea 5000 Keypad Module Aluminium
SKU: BT-345500

Keypad module with aluminium key finish for door lock opening in 2-wire systems where there is at least one Linea 5000 display module

Compare You can only compare 4 products, you must remove 1 to add this one

Keypad module with aluminium key finish for door lock opening in 2-wire systems where there is at least one Linea 5000 display module

The keypad module is fitted with relay contacts (C – NO - NC) and clamps (CP - P1) for the connection of a local door release pushbutton
It can be programmed using the Home + Project app
Equipped with LEDS for the visual notification of the access status and night backlighting
It can be used stand-alone or combined with a display module in a 3+1 composition
To be completed with the appropriate finishing frame

To be installed in 1-module flush mounted box 350010, in wall mounted box 345311 or with dedicated accessory 345341 for 3+1 composition.

Model	Push button
Reading strategy biometric	No
Reading strategy code	Yes
Installation technique	Bus system
Flush-mounted installation	Yes
Surface mounting	Yes
With housing	No
Suitable for outdoor installation	Yes
Suitable for indoor installation	Yes
Ambient temperature (Min-Max)	-25-70 °C
Width	124 mm
Height	91 mm
Depth	35 mm
Type of voltage (input voltage)	DC
Operating voltage (Min-Max)	18-27 V
Housing material	Plastic
Number of call buttons	12
Contains keypad	Yes
With day/night function	No

Hearing aid compatible	No
Colour	Aluminium
Built-in depth	23 mm
degree of impact strength (IK)	IK08
Degree of protection (IP)	IP65
Storage temperature (Min-Max)	-25-70 °C
Halogen free	Yes
Label space/information surface	No
Connected object	No
Operating method	SCS , Bluetooth
Application store for download	Google Play Store , App Store
With voice command	No
Programmable	Yes
Interoperable connection Protocol	No
Connectable by Internet box	No
Application name	Home + Project , Home + Security
Product use function	Door entry systems
Programming way	Apps
