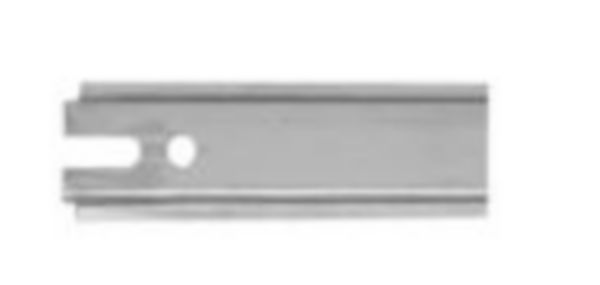

Lina 25 rail - for cabinets width 800 mm - L. 743 mm

LEGRAND

Lina 25 rail - for cabinets width 800 mm - L. 743 mm

REF. 036784 EAN. 3245060367848
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Atlantic stainless steel and Marina cabinets - equipment
  • Lina 25 rail - For Fixing onto up Rights with clip nut Cat.No 0 364 42 and screw - washer Cat.No 0 367 75 depth 15 mm - For cabinets width : 800 mm - Crosspiece length : 743 mm

Technical characteristics

Model DIN rail (top hat rail) 35/15 mm
Material Steel
Surface protection Chromated
Punch shape Long-slot
Drill hole distance centrically 723 mm
Material thickness 1.5 mm
Length 743 mm
Height 15 mm

Documentation

2 documents
Catalogue Technical Page
ex223001_0437.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0431.pdf pdf (0.09 Mo)
1 document
3D Autocad
036784.dwg dwg (0.04 Mo)
