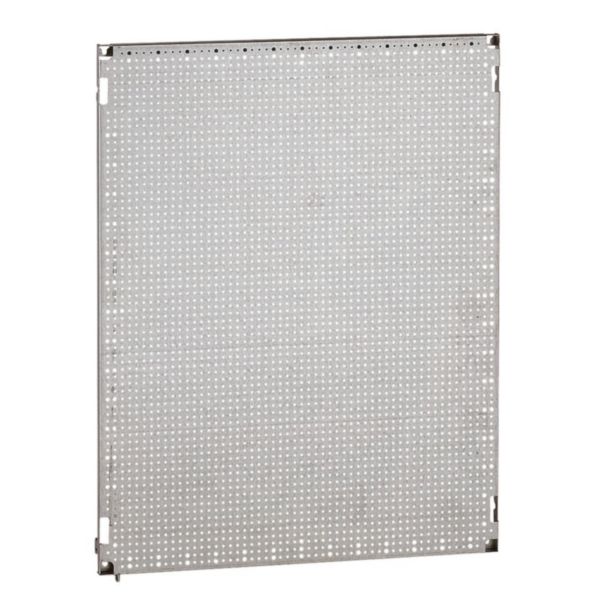

Lina 12.5 plate - for Marina enclosures - height 1000 x width 800 mm

Name: Lina 12.5 plate - for Marina enclosures - height 1000 x width 800 mm
SKU: 048143

LEGRAND

REF. 048143 EAN. 3245060481438

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for Marina enclosures
Equipment Lina 12.5 plates - Galvanized steel - With drilling for Fixing equipment without marking - Automatic bracket : - 6.5 mm for plastic rivet Cat.No 0 366 44 (trunking) - 3.3 mm for equipment with screw Cat.No 0 347 45 - For installation of Cat. No 0 481 40/43, use Lina 25 sectioned up Rights - Cat. No 0 364 08 can be fixed directly on the back of the enclosure (1400 mm height enclosures) - Admissible load : 150 kg/m² - Cat. No 0 364 08 can be fixed directly on the back of the enclosure (1400 mm height enclosures) - Admissible load : 150 kg/m² - plates Height x Width : 1000 x 800 mm - Net weight : 7.6 kg

2 documents

Select all

Technical Sheet

F00714EN-02.pdf pdf (3.26 Mo)

Technical Sheet

F00714FR-03.pdf pdf (3.25 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0425.pdf pdf (0.11 Mo)

1 document

Select all

3D Autocad

048143.dwg dwg (0.05 Mo)

1 document

Select all

PEP

LGRP-00279-V01.01-EN.pdf pdf (1.01 Mo)
