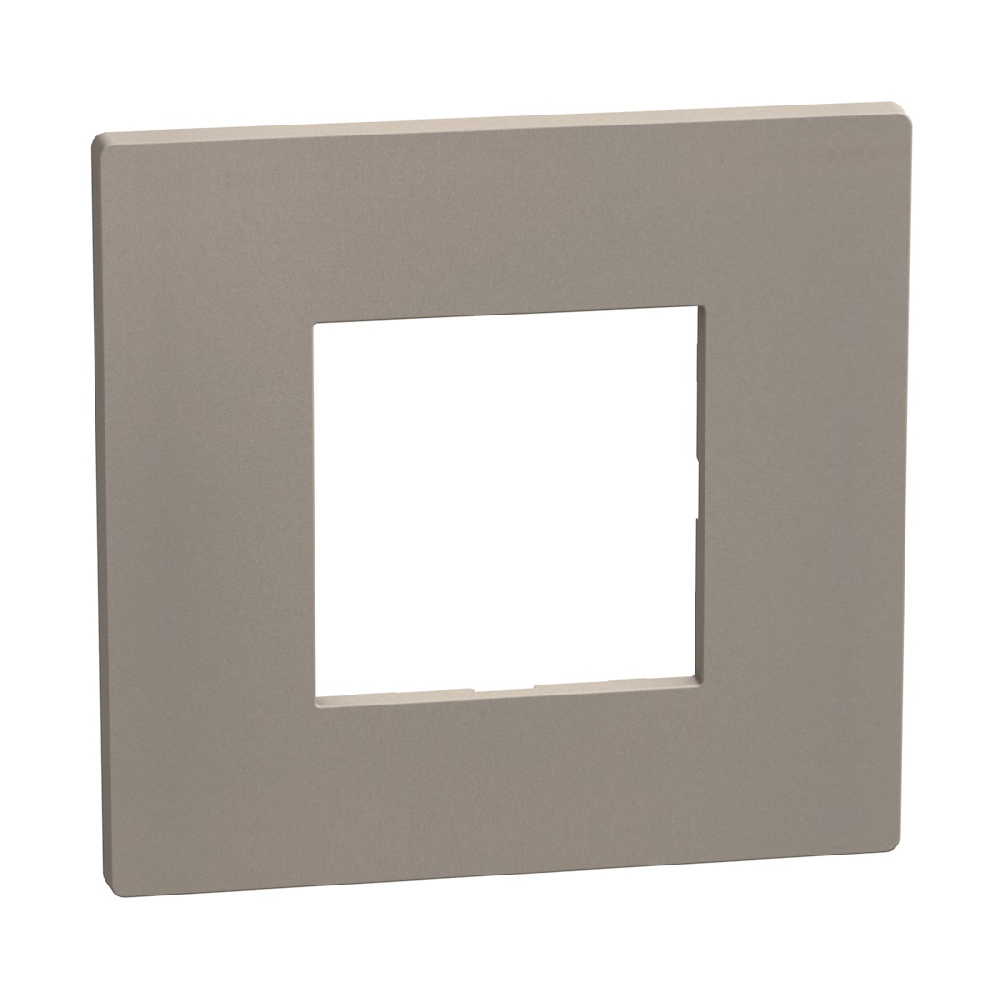

Light Now - Coverplate 2M stone - 2-module horizontal - Matt lacquered thermoplastic, halogen free - IK04 impact strength, 95x90x8.5mm

Light Now Bticino

Light Now - Coverplate 2M stone - 2-module horizontal - Matt lacquered thermoplastic, halogen free - IK04 impact strength, 95x90x8.5mm

REF. BT-YA4802GG EAN. 8005543752357
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Monolithic minimal design with precise detailing, featuring a flat, matt-finished thermoplastic surface in a traditional composition for contemporary interiors.
  • Flexible floating frame at the rear ensures perfect alignment and compensates for wall irregularities, concealing external collars of plasterboard boxes for seamless flush-mounted installation.
  • Accommodates 2 modules in a horizontal configuration, suitable for domestic switching devices with snap-fit fastening for efficient installation.
  • Stone finish in RAL 7008 grey, utilising water-based lacquer and bio-based transparent coating for a tactile, visually evocative effect that integrates discreetly into diverse environments.
  • Delivered in 100% plastic-free packaging, utilising water-based paints and ecological glues, with digitally printed paper flowpack for enhanced product recognition and sustainability.
Recommendation / Restriction
  • Indoor use only

The product's benefits

Installation
  • The Light Now cover plate is equipped with a flexible frame, placed on the back of the plate, free to move on the four corners, ensuring an optimal installation.
Avantages
  • This Light Now coverplate, takes part in a filed collection of 9 finishes and has a sustainable CMF apporach. With its modern shape and floating frame, it provides perfect alignment to the wall, ensuring a perfect wall-flush
  • Effects: A muted tone that respond to a long-term interior trends. It's transversal on all types of spaces and has a texture that is suggestive both to the eye and to the touch
  • Stone: it's inspired by the elements present in nature, such as sand, stones or certain materials used for construction. A water-based paint with witch little spheres for the texture, with a bio transparent based on the fermentation of bio masses, to achieve an interesting aesthetic effect and a circular story

Technical characteristics

Number of units 1
Mounting direction Horizontal and vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Suitable for built-in installation No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Grey
RAL-number (similar) 7008
Transparent Yes
With hinged lid No
Degree of protection (IP) Other
degree of impact strength (IK) IK04
Type of fastening Engage (snap)
Width 95 mm
Height 90 mm
Depth 8.5 mm
Built-in width 95 mm
Built-in height 90 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
