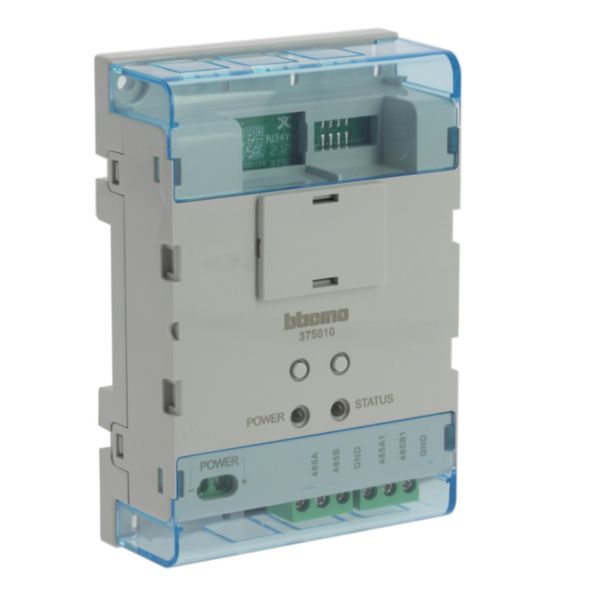

Name: Lift control protocol translator interface to integrate the lift function in IP door entry system
SKU: BT-375010

Lift control protocol translator interface to integrate the lift function in IP door entry system

BTICINO

Lift control protocol translator interface to integrate the lift function in IP door entry system

REF. BT-375010 EAN. 8005543693711

Compare You can only compare 4 products, you must remove 1 to add this one

Software configuration to match brand/model of different lift and integrate them in the system
RS 485 cabiling

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	Other
Radio frequency bidirectional	No
Model	RS-485
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	4
Number of channels	2
Max. number of devices per channel	1
Demounting protection	No
With LED indication	Yes
Updateable	Yes
Operating voltage (Min-Max)	24-24 V
Voltage type	DC
Protocol	Other
Provider dependent	No
Visualization	No
Web-Server	No
Radio interface	No
IR interface	No
Degree of protection (IP)	IP20
Width	72 mm

Height	105 mm
Depth	33 mm
degree of impact strength (IK)	Not applicable
Operating / setting temperature (Min-Max)	-10-55 °C
Storage temperature (Min-Max)	-25-70 °C
Supply current (Min-Max)	0.027-0.1 A
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Screwed terminal , Other
Terminals capacity (Min-Max)	0.5-1 mm²
Label space/information surface	No
Fitted with USB plug	No
Contains Batteries and/or Accumulator	No
Addressable	No
Connected object	Yes
Operating method	Network
Application store for download	Legrand Web site
Programming way	Computer
With voice command	No
Programmable	No
Connectable by Internet box	No
Application name	Home + Security
Product use function	Door entry systems
