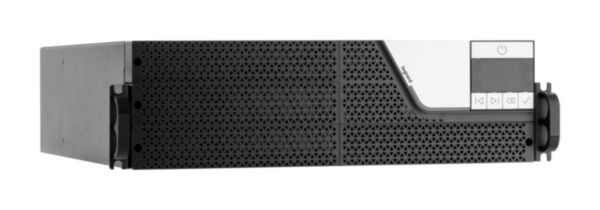

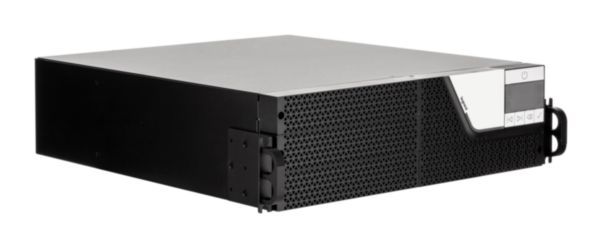

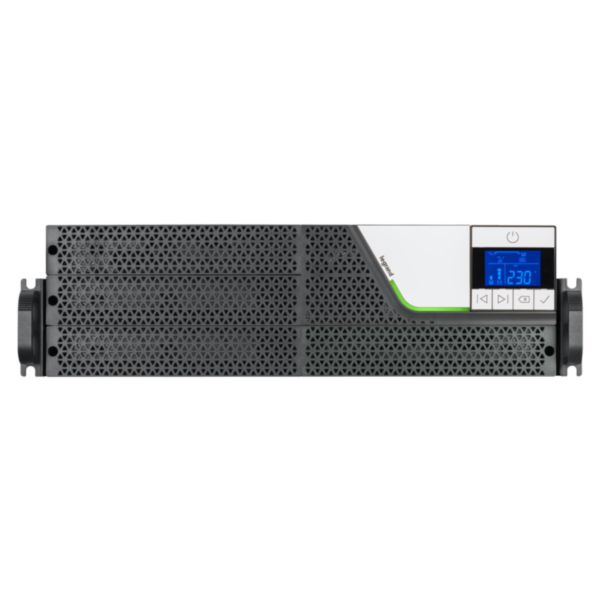

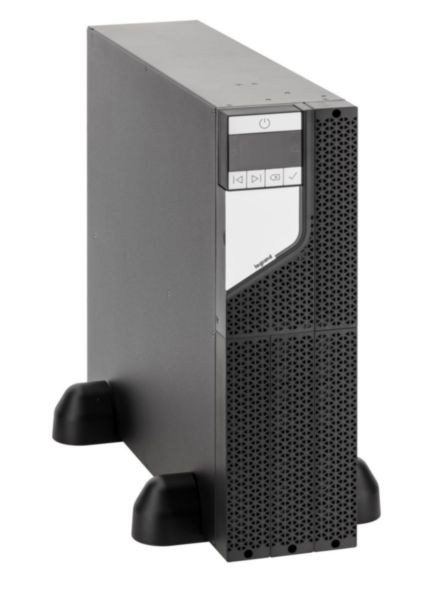

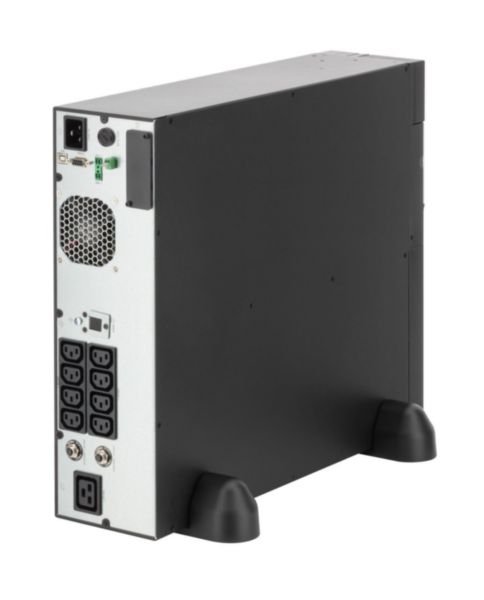

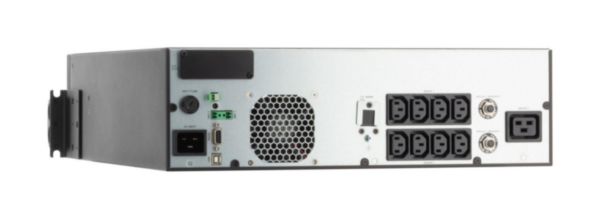

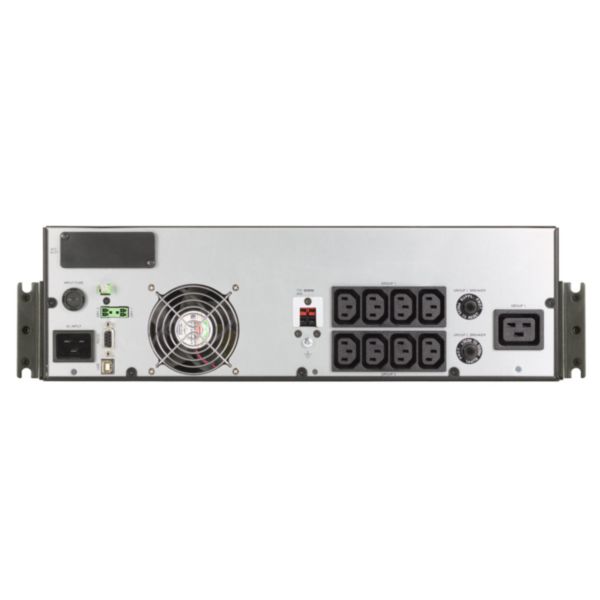

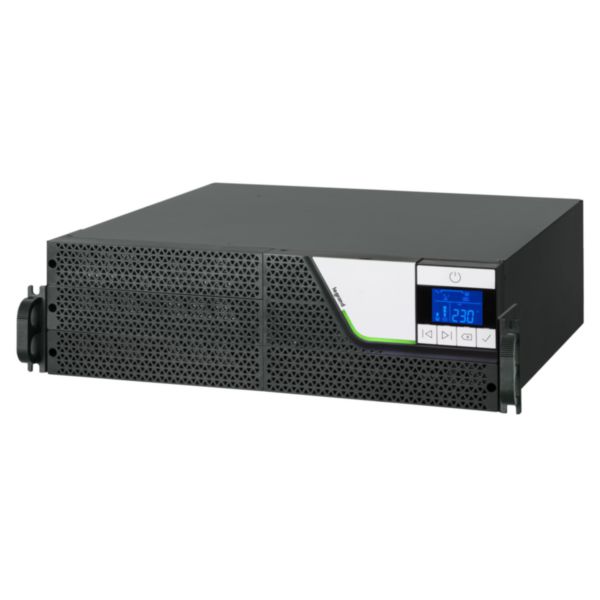

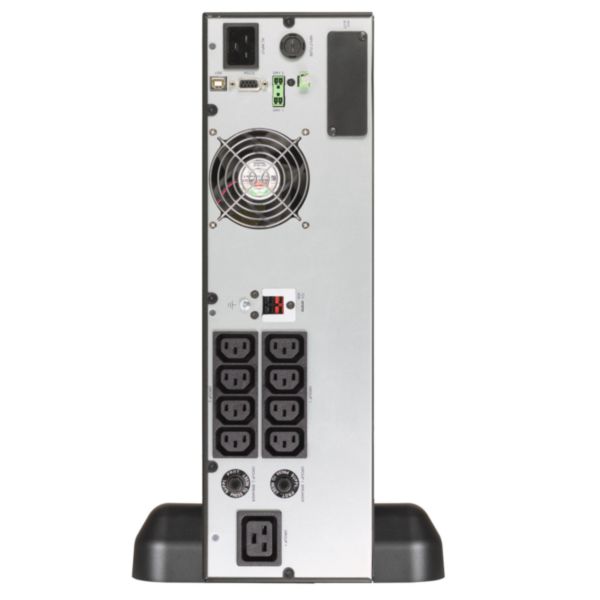

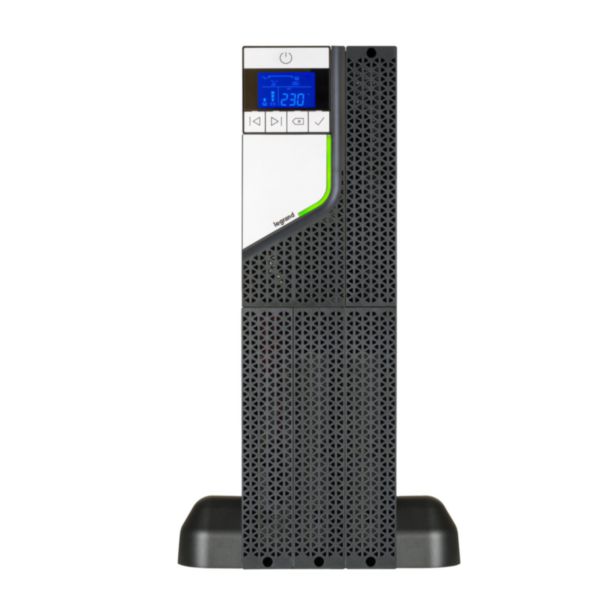

Legrand Keor SPE R/T 3000VA - UPS (rack-tower / convertible LCD)

Keor LEGRAND

Legrand Keor SPE R/T 3000VA - UPS (rack-tower / convertible LCD)

REF. 311073 EAN. 3414972083478
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Input voltage 175 - 288 V
Primary frequency 47-63 Hz
Number of phases primary 1
Output voltage 208-240 V
Secondary frequency 50-60 Hz
Output effective power 2700 W
Output apparent power 3000 VA
USB interface Yes
With communication interface RS-232 No
SNMP Yes
Voltage type AC
Height 132 mm
Width 440 mm
Depth 500 mm
Weight 29.5 kg
Bridging time full load 2 min
Suitable for network-management Yes
USV- technology Line-interactive
Construction type 482.6 mm (19 inch) device
Max. voltage distortion output (linear load) 3 %
Output power factor 0.9
Overall efficiency 85 %
Efficiency in eco-mode 98 %
Potential free switch contact Yes
Auto shut down function Yes
Input connection C20
Number of output connections C13 8
Number of output connections C19 1
Number of output connections with protective contact CEE 7/3 (type F) 0
Number of output connections fixed connection 0
Degree of protection (IP) IP20
Operating / setting temperature 0-40 °C
Storage temperature 0-50 °C
Supply current 10-17 A
Sound level 55 dB
Terminal marking indication Yes
Type of load Not applicable
With socket outlet Yes
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) VRLA
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Lead-acid
Number of Pack 1 1
Number of Single Element (Pack1) 6
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
