Legrand Keor SP UPS 600VA - 4 IEC Sockets (backup + surge protected), AVR

Keor LEGRAND

Legrand Keor SP UPS 600VA - 4 IEC Sockets (backup + surge protected), AVR

REF. 310180 EAN. 3414971231979
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Input voltage 170-280 V
Primary frequency 45-65 Hz
Number of phases primary 1
Output voltage 207-253 V
Secondary frequency 49-61 Hz
Output effective power 360 W
Output apparent power 600 VA
USB interface Yes
With communication interface RS-232 No
Number of phases secondary 1
SNMP No
Voltage type AC
Height 138 mm
Width 120 mm
Depth 330 mm
Weight 5 kg
Bridging time full load 1 min
Suitable for network-management No
USV- technology Line-interactive
Construction type Free standing model
Output power factor 0.6
Overall efficiency 96 %
Potential free switch contact No
Auto shut down function No

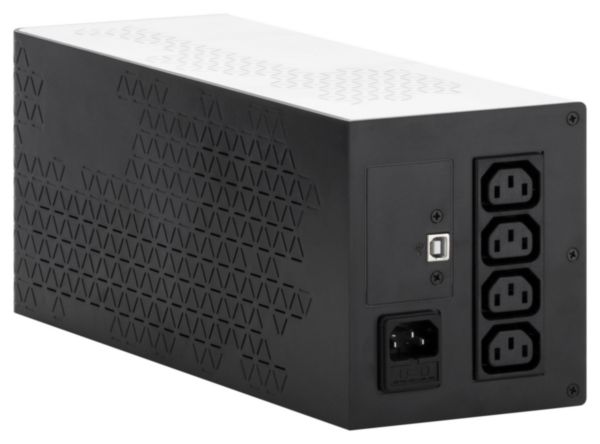

Input connection C14
Number of output connections C13 4
Number of output connections C19 0
Number of output connections with protective contact CEE 7/3 (type F) 0
Number of output connections fixed connection 0
Number of output connections French standard (Type E) 0
Degree of protection (IP) Not applicable
Operating / setting temperature 0-40 °C
Storage temperature 0-40 °C
Sound level 40 dB
Type of load Universal
With socket outlet Yes
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) VRLA
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Lead
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 2050 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) I : Industrial (not Portable)

Documentation

7 documents
Technical Guide
EXB21082_EN.pdf pdf (11.02 Mo)
Technical Sheet
UPS_LGR_0160_GB_AA.pdf pdf (0.16 Mo)
White Book
EXB22078_EN.pdf pdf (4.09 Mo)
White Book
EXB22058_EN.pdf pdf (1.06 Mo)
Instruction Use
LE10802AC.pdf pdf (4.18 Mo)
Technical Sheet
UPS_LGR_0160_FR_AA.pdf pdf (0.15 Mo)
Instruction Use
LE11154AB.pdf pdf (17.67 Mo)
1 document
Catalogue Commercial Page
ex223001_0926.pdf pdf (0.06 Mo)
1 document
PEP
LGRP-00793-V01.01-EN.pdf pdf (0.83 Mo)
