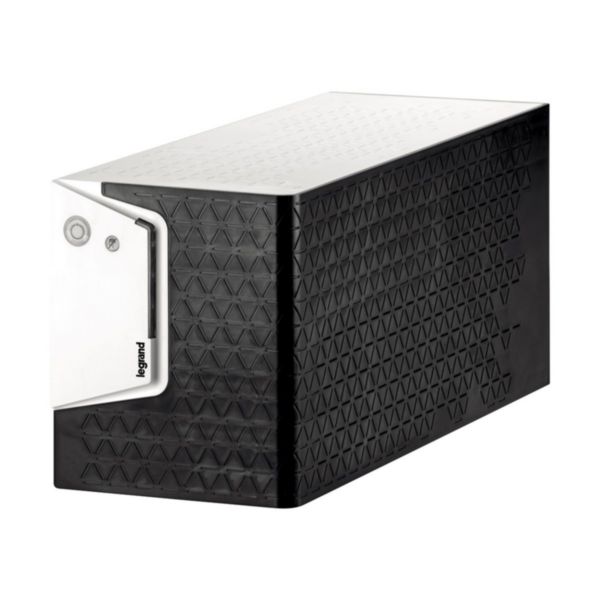

Legrand Keor SP UPS 2000VA - 2 IEC + 2 GR Sockets (backup + surge protected), AVR


Legrand Keor SP UPS 2000VA - 2 IEC + 2 GR Sockets (backup + surge protected), AVR

REF. 310193 EAN. 3414971232105
You can only compare 4 products, you must remove 1 to add this one

Technical characteristics

Input voltage 170-280 V
Primary frequency 45-65 Hz
Number of phases primary 1
Output voltage 207-253 V
Secondary frequency 49-61 Hz
Output effective power 1200 W
Output apparent power 2000 VA
USB interface Yes
With communication interface RS-232 Yes
Number of phases secondary 1
Voltage type AC
Height 173 mm
Width 148 mm
Depth 380 mm
Weight 11.8 kg
Bridging time full load 0 min
Suitable for network-management No
USV- technology Line-interactive
Construction type Free standing model
Output power factor 0.6
Overall efficiency 97 %
Potential free switch contact No
Auto shut down function No
Input connection C14
Number of output connections C13 2
Number of output connections C19 0
Number of output connections with protective contact CEE 7/3 (type F) 2
Number of output connections fixed connection 0
Number of output connections French standard (Type E) 0
Degree of protection (IP) Not applicable
Operating / setting temperature 0-40 °C
Storage temperature 0-40 °C
Sound level 40 dB
Type of load Universal
With socket outlet Yes
Contains Batteries and/or Accumulator Yes
