Legrand Daker DK Plus 2kVA - UPS (rack-tower / extended battery)

Name: Legrand Daker DK Plus 2kVA - UPS (rack-tower / extended battery)
SKU: 310171

Daker DK+ LEGRAND

Legrand Daker DK Plus 2kVA - UPS (rack-tower / extended battery)

REF. 310171 EAN. 3414970826930

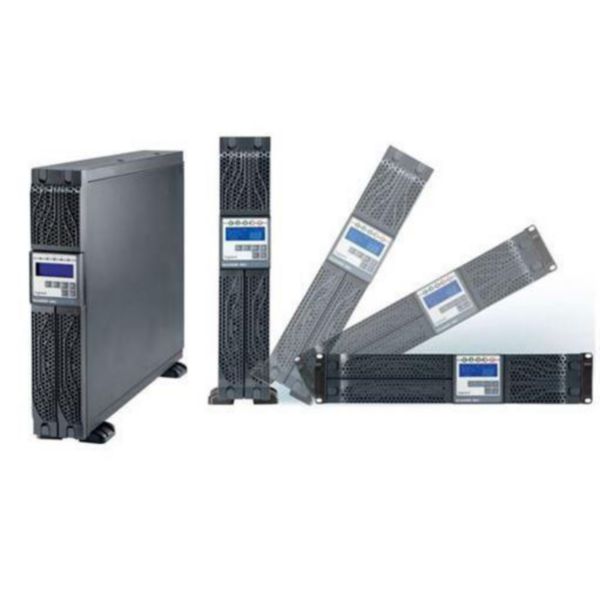

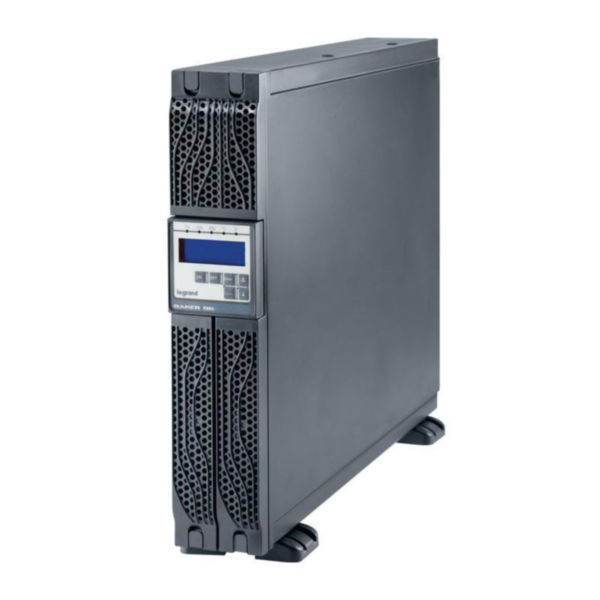

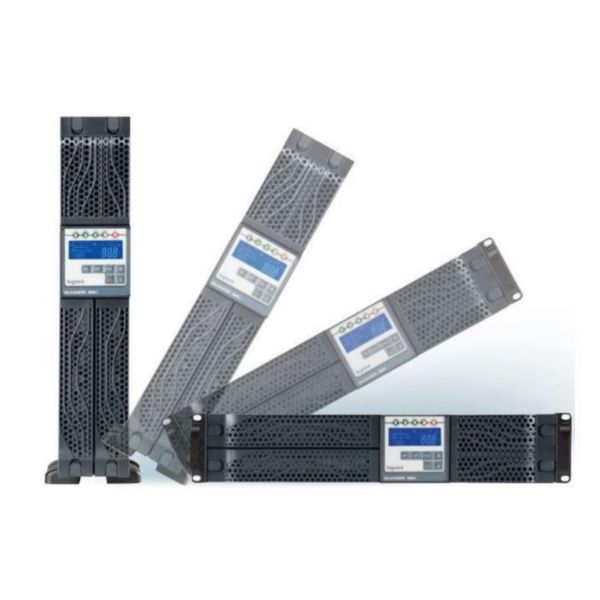

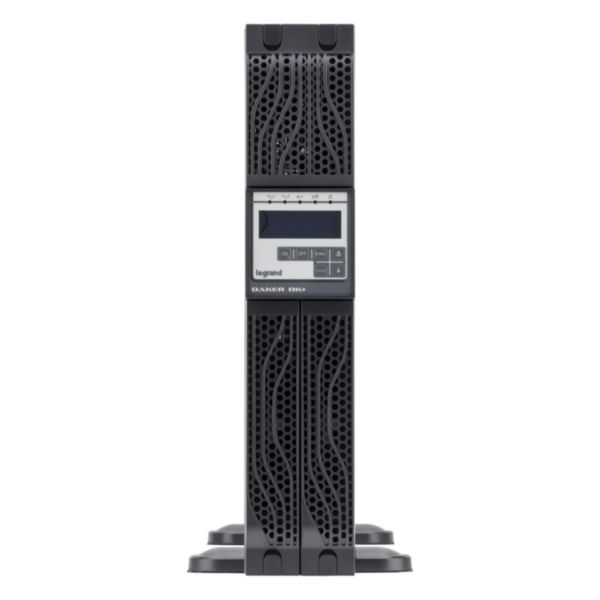

Daker DK Plus single-phase on-line double conversion VFI tower or rack UPS delivering 2000VA/1800W with 0.9 power factor. Its 19inches rack-tower design, snmp management, and LCD screen protect IT and critical systems.

Download product sheet

Compare You can only compare 4 products, you must remove 1 to add this one

Description
Documentation
Others also bought
You might also need

Description

Product characteristics

Online Double Conversion
19" Rack Type
Power Factor : 0,9
RS232 USB SNMP
Reversible screen

Technical characteristics

Input voltage (Min-Max)	176-280 V
Primary frequency (Min-Max)	47.5-63 Hz
Number of phases primary	1
Output voltage (Min-Max)	228-232 V
Secondary frequency (Min-Max)	50-60 Hz
Output effective power	1800 W
Output apparent power	2000 VA
Number of phases secondary	1
SNMP	Yes
Voltage type	AC
Height	440 mm
Width	88 mm
Depth	600 mm
Weight	29.5 kg
Bridging time full load	5 min
Suitable for network-management	Yes
USV- technology	Online
Construction type	482.6 mm (19 inch) device
Max. voltage distortion output (linear load)	3 %
Output power factor	0.9
Overall efficiency	91 %

Efficiency in eco-mode	97 %
Potential free switch contact	No
Auto shut down function	No
Input connection	C14
Number of output connections C13	6
Degree of protection (IP)	IP21
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	0-50 °C
Supply current (Min-Max)	13.6-13.6 A
Sound level	50 dB
Type of load	Universal
With socket outlet	Yes
Contains Batteries	Yes
Number of batteries (Type 1)	1
IEC code (Type 1)	VRLA
Battery ou Accumulator (Type 1)	Accumulator (rechargeable)
Battery Composition (Type 1)	Rechargeable - Lead
Battery Location (Type 1)	Product includes a battery
Regulation Type (Type 1)	I : Industrial (not Portable)
Battery weight (g) for Type 1	2400 g
Number of Single Element (Pack1)	1
