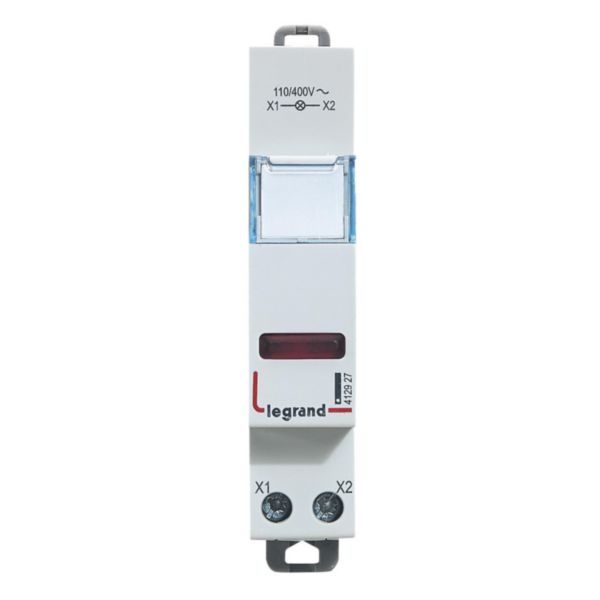

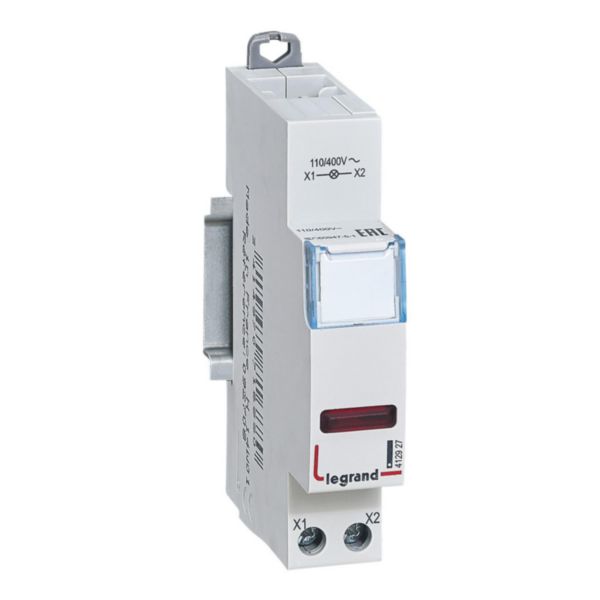

Name: LED indicator - red 110/400 V~ - 1 module
SKU: 412927

LED indicator - red 110/400 V~ - 1 module

CX³ LEGRAND

LED indicator - red 110/400 V~ - 1 module

REF. 412927 EAN. 3414970531612

Compare You can only compare 4 products, you must remove 1 to add this one

Colour calotte	Red
Lamp type	LED
Lamp socket	Other
Max. lamp power	0.5 W
Rated voltage	400 V
Voltage type	AC
Width in number of modular spacings	1
Built-in depth	44 mm
Degree of protection (IP)	IP40
Width	17.8 mm
Height	93.4 mm
Depth	67.3 mm
degree of impact strength (IK)	IK04

Operating / setting temperature	-25-70 °C
Storage temperature	-40-70 °C
Frequency	50-60 Hz
Estimated bulb life	100000 h
Electric supplying direction	By the top or bottom
Terminal marking indication	Yes
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Screwed terminal , Cable
Terminals capacity	0.75-4 mm²
Label space/information surface	Yes
Mounting method	DIN rail

2 documents

Select all

Technical Sheet

F02023FR-02.pdf pdf (0.4 Mo)

Technical Sheet

F02023EN-02.pdf pdf (0.36 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_0099.pdf pdf (0.08 Mo)

1 document

Select all

3D Autocad

412927.dwg dwg (0.13 Mo)

1 document

Select all

Agreement

OC / CB-FR 664481 (0.8 Mo)

LED indicator - red 110/400 V~ - 1 module
