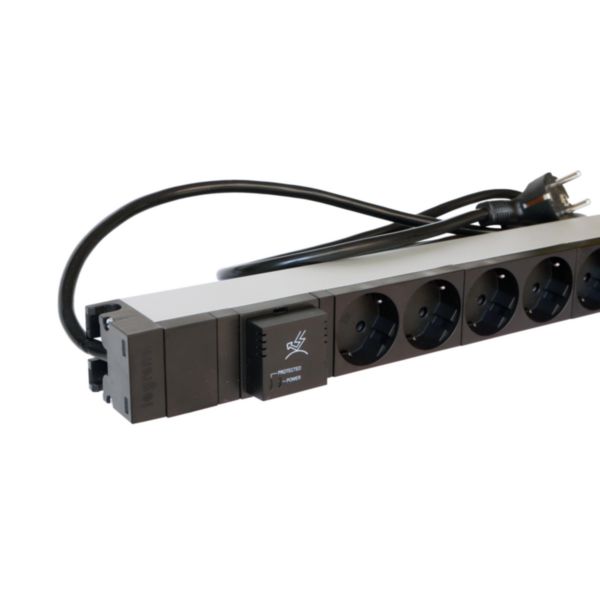

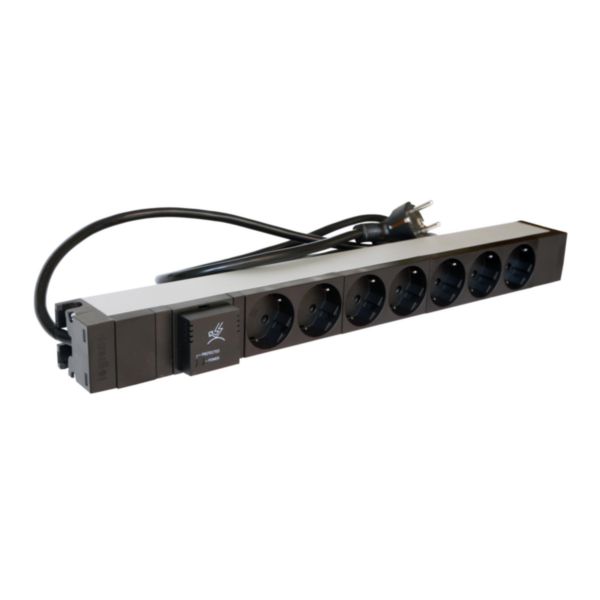

LCS³ 19" PDU 1phase 16A 7 outlets Schuko with surge protection

LCS³ LEGRAND

LCS³ 19" PDU 1phase 16A 7 outlets Schuko with surge protection

REF. 646903 EAN. 3414972338523

PDU 19 inches 1U 1 phase 16A with 7 x 2P+E german standard outlets, to supply power to equipment in 19" enclosures. With aluminium casing, socket modules, a mounting and a termination solution. With additional Surge Protection Device (SPD).

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

PDU 19 inches 1U 1 phase 16A with 7 x 2P+E german standard outlets, to supply power to equipment in 19" enclosures. With aluminium casing, socket modules, a mounting and a termination solution. With additional Surge Protection Device (SPD).

Product characteristics
  • 7 x 2P+E german outlets equipped with protective shutters
  • With Surge Protection Device (SPD)
  • Single phase - Input voltage 230V
  • Input current 16A - Maximum power 3.7kW
  • 3m power supply cord with Schuko/UTE plug

The product's benefits

Installation
  • Quick fixing (no screws) on 19 inches fixing centers. Can also be installed vertically by reverting the brackets. The end-cap integrates a cable holder to orientate and maintain perfectly the power cord.
Usage
  • Equipped with an additional SPD (Surge Protective Devices) designed to limit transient overvoltages of atmospheric and industrial origin.

Technical characteristics

Mounting dimension (standardised) 482.6 mm (19 inch)
Mounting size 442 mm
Mounting direction Horizontal/vertical
Electrical connection Connection cable with plug
Number of phases 1
Cable length 3 m
Number of miniature circuit breakers (MCB) 0
Number of socket outlets with protective contact CEE 7/3 (type F) 7
Number of socket outlets with protective contact CEE 7/5 (type E) 0
Number of C13 socket outlets 0
Number of C19 socket outlets 0
Number of C20 socket outlets 0
Number of socket outlets British Standard BS 1363 0
Number of socket outlets Swiss standard type 13 0
Number of socket outlets Swiss standard type 15 0
Number of socket outlets Swiss standard type 23 0
Number of socket outlets Swiss standard type 25 0
Number of other socket outlets 0
Number of height units 1
Length 442 mm
Width 44.3 mm
Depth 66.5 mm
Nominal current 32 A
Supply voltage 230 V
With surge protection module No
Overvoltage category 2
Mains filter No
Switchable No
With meter No
Control function No
SNMP No
With display No
With LED indication No
With fuse No
Ampere meter No
Temperature measurement No
With mounting material Yes
Colour Black
degree of impact strength (IK) Not applicable
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) 5-40 °C
Storage temperature (Min-Max) 20-70 °C
Voltage type AC
Supply current (Min-Max) 32-32 A
Frequency (Min-Max) 50-60 Hz
Terminal marking indication Yes
RAL-number 9017
Connection type Screwed terminal
Terminals capacity (Min-Max) 1.5-6 mm²
Cable nature for connection Flexible
Cable section (Min-Max) 1.5-2.5 mm²
Maximum Input cable diameter 10 mm
Number of RCCBs 0
Connected object No
