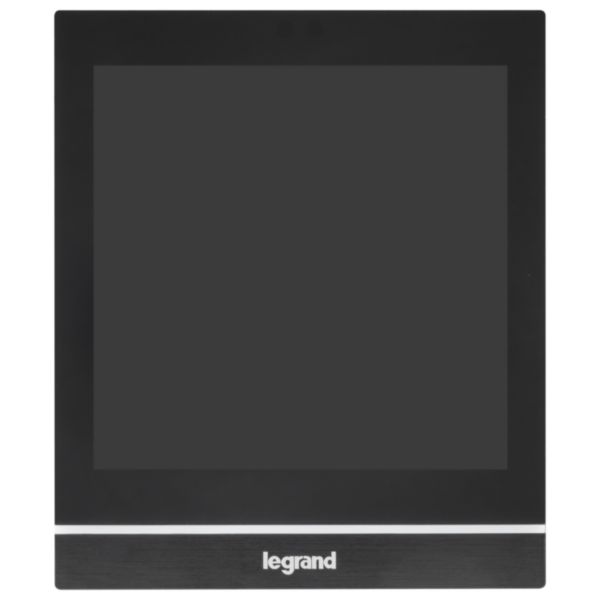

KNX-Tpouch screen 4"

Legrand

KNX-Tpouch screen 4"

REF. 002900 EAN. 3414972579629

4" touch panel with with multifunctions including switch, dimming, shutter, scene control, value sending, RGB and Color Temp. control, HVAC, audio control, energy metering, air quality display

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

4" touch panel with with multifunctions including switch, dimming, shutter, scene control, value sending, RGB and Color Temp. control, HVAC, audio control, energy metering, air quality display

Product characteristics
  • 9 control pages
  • Max.16 timing , 8 group event, 8 logic functions
  • built-in temperature & proximity sensor

The product's benefits

Installation
  • KNX standard
Usage
  • 9 pages customizable

Technical characteristics

Supply voltage DC (Min-Max) 21-30 V
Voltage type (supply voltage) DC
Power consumption 2.2 W
Number of HW-interfaces industrial Ethernet 0
Number of interfaces PROFINET 0
Number of HW-interfaces RS-232 0
Number of HW-interfaces RS-422 0
Number of HW-interfaces RS-485 0
Number of HW-interfaces serial TTY 0
Number of HW-interfaces USB 0
Number of HW-interfaces parallel 0
Number of HW-interfaces wireless 0
Number of HW-interfaces other 1
With SW interfaces No
Supporting protocol for EtherCAT No
Supporting protocol for TCP/IP No
Supporting protocol for PROFIBUS No
Supporting protocol for CAN No
Supporting protocol for INTERBUS No
Supporting protocol for ASI No
Supporting protocol for KNX Yes
Supporting protocol for Modbus No
Supporting protocol for Data-Highway No
Supporting protocol for DeviceNet No
Supporting protocol for SUCONET No
Supporting protocol for LON No
Supporting protocol for PROFINET IO No
Supporting protocol for PROFINET CBA No
Supporting protocol for SERCOS No
Supporting protocol for Foundation Fieldbus No
Supporting protocol for EtherNet/IP No
Supporting protocol for AS-Interface Safety at Work No
Supporting protocol for DeviceNet Safety No
Supporting protocol for INTERBUS-Safety No
Supporting protocol for PROFIsafe No
Supporting protocol for SafetyBUS p No
Supporting protocol for other bus systems No
Radio standard Bluetooth No
Radio standard WLAN 802.11 No
Radio standard GPRS No
Radio standard GSM No
Mobile communications standard 3G (UMTS) No
IO link master No
Type of display TFT
Colour display Yes
Number of colours of the display 16700000
Number of grey-scales/blue-scales of display 256
Screen diagonal 3.95 inch
Number of pixels, horizontal 480
Number of pixels, vertical 480
With numeric keyboard No
With alpha numeric keyboard No
Number of function buttons, programmable 0
Number of buttons with LED 0
Number of system buttons 0
Touch technology Capacitive multitouch
With message indication No
With message system (incl. buffer and confirmation) No
Process value representation (output) possible No
Process default value (input) possible No
With recipes No
Number of password levels 4
With printer output No
Number of online languages 12
Degree of protection (IP), front side IP20
Degree of protection (NEMA), front side 1
Certified for UL hazardous location class I No
Certified for UL hazardous location class II No
Certified for UL hazardous location class III No
Certified for UL hazardous location division 1 No
Certified for UL hazardous location division 2 No
Certified for UL hazardous location group A (acetylene) No
Certified for UL hazardous location group B (hydrogen) No
Certified for UL hazardous location group C (ethylene) No
Certified for UL hazardous location group D (propane) No
Certified for UL hazardous location group E (metal dusts) No
Certified for UL hazardous location group F (carbonaceous dusts) No
Certified for UL hazardous location group G (non-conductive dusts) No
Operating temperature (Min-Max) -5-45 °C
Suitable for rail mounting No
Wall mounting/direct mounting Yes
Suitable for safety functions No
Width of the front 86 mm
Height of the front 101.3 mm
Built-in depth 21.7 mm
