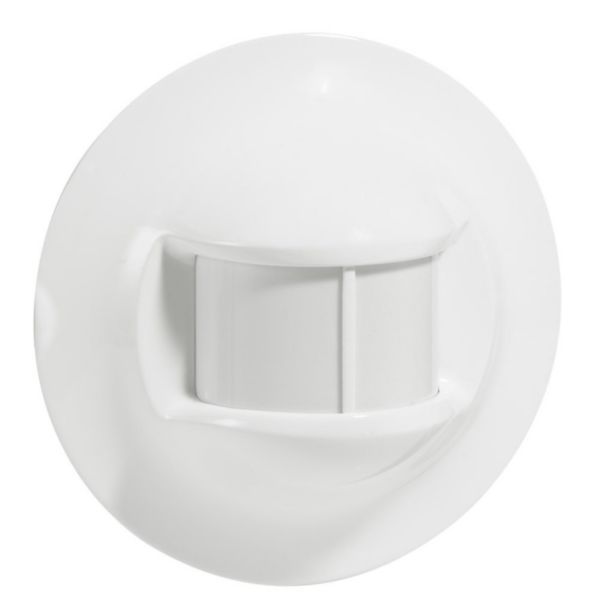

KNX PIR 360° PRESENCE SENSOR 2x12m - CEILING MOUNTED - IP41
-
LEGRAND
KNX PIR 360° PRESENCE SENSOR 2x12m - CEILING MOUNTED - IP41
REF. 048919
EAN.
3245060489199
Share
You can only compare 4 products, you must remove 1 to add this one
Technical characteristics
| Model | Movement sensor |
|---|---|
| Mounting method | Flush-mounted |
| Constant light control | Yes |
| HVAC-control | No |
| Networkable | Yes |
| Suitable for wireless transmission | No |
| Creep-under protection | Yes |
| Mounting height | 2.5 m |
| Max. reach sideways | 12 m |
| Diameter reach on floor | 3 m |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Animal zone | No |
| Staircase light controller | Yes |
| Combination movement sensor/push button switch | No |
|---|---|
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Suitable for degree of protection (IP) | IP20 |
| Operation mode switch | No |
| Min. switch-on time | 5 s |
| Max. duty cycle | 18 min |
| Detection angle horizontal | 0-360 ° |
| Compatible with Apple HomeKit | No |
| Colour | White |
| RAL-number (similar) | 9003 |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
Documentation
5 documents
Technical Guide
Instruction Use
Technical Guide
Technical Guide
Technical Sheet
1 document
Catalogue Commercial Page
1 document
Agreement
KNX EIB-11/11783/14
(0.21 Mo)
