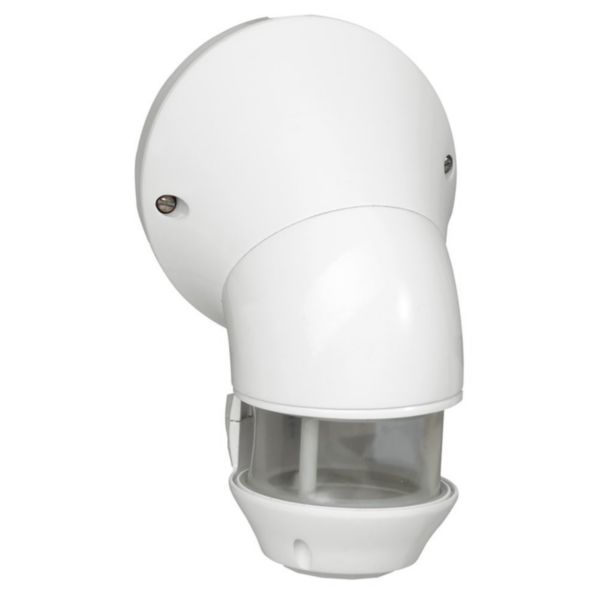

KNX PIR 270° LIGHTING SENSORS 18m - IP 55 - surface wall or ceiling mounting

LEGRAND

KNX PIR 270° LIGHTING SENSORS 18m - IP 55 - surface wall or ceiling mounting

REF. 048921 EAN. 3245060489212
KNX BUS motion detector for outdoor parking areas and basements, offers 270° PIR detection up to 18m at 2,5m and IP55 protection. Constant light control with adjustable sensitivity and luminosity, 0,5W consumption and direct KNX connector.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

KNX BUS motion detector for outdoor parking areas and basements, offers 270° PIR detection up to 18m at 2,5m and IP55 protection. Constant light control with adjustable sensitivity and luminosity, 0,5W consumption and direct KNX connector.

Product characteristics
  • PIR detection with 270° horizontal coverage, range up to 18m at 2.5m mounting height for KNX lighting management in parking lots and similar areas
  • IP 55 degree of protection for reliable operation in outdoor and humid environments
  • Very low power consumption of 0.5W minimizing standby energy use in KNX installations
  • Direct BUS connection via KNX red/black connector for fast, secure wiring and ETS configuration
  • Multi-lens PIR sensor with directional head enabling precise targeting of detection zones and creep-under protection
Recommendation / Restriction
  • Configuration through ETS tool from KNX association

The product's benefits

Installation
  • Can be mounted on an angle using accessory Cat.No 0 489 72
Usage
  • Ideal for outdoor and humid areas with natural light
Avantages
  • Constantly check for presence and light levels, switching off as soon as the natural light level is sufficient Switch on and off automatically
  • Accurate set-up on site with configuration device
  • Because a broad range of KNX devices communicate with each other, (even if they are from different manufacturer) KNX technology answers to high demands for smart home or building thanks to endless flexibility and personalization

Technical characteristics

With movement sensor Yes
Mounting method Surface mounted
Constant light control Yes
HVAC-control No
Networkable Yes
Suitable for wireless transmission No
Creep-under protection Yes
Mounting height 2.5 m
Max. reach sideways 5 m
Max. reach frontally 15 m
Diameter reach on floor 10 m
Response value sensitivity adjustable Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity No
Dim function with dimmer basic element No
Animal zone No
Staircase light controller Yes
Combination movement sensor/push button switch No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Suitable for degree of protection (IP) IP55
Operation mode switch No
Min. switch-on time 5 s
Max. duty cycle 18 min
Detection angle horizontal (Min-Max) 0-270 °
Colour White
RAL-number (similar) 9003
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
