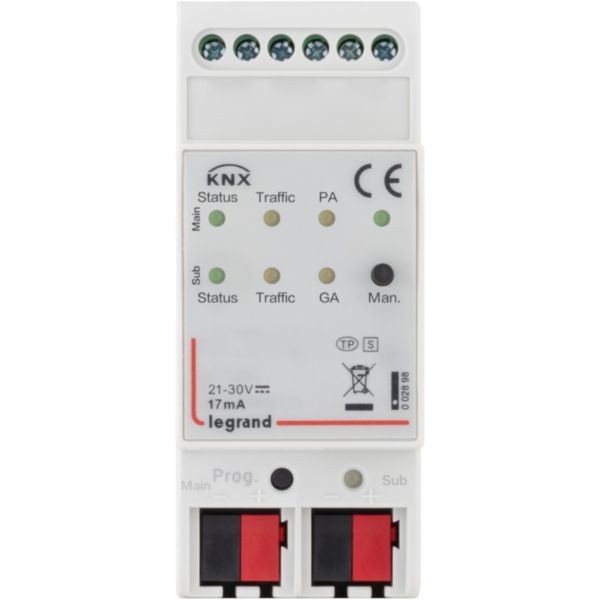

KNX - Line coupler DIN

REF. 002898 EAN. 3414972968454

KNX line coupler able to filter the traffic according to the installation place in the bus system hierarchy or according to the built in filter tables for group oriented communication

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

KNX line coupler able to filter the traffic according to the installation place in the bus system hierarchy or according to the built in filter tables for group oriented communication

Product characteristics
  • Usable as a line coupler, backbone coupler, or repeater.
  • Filtering bus telegrams to reduce bus load.
  • Galvanic isolation between connected lines.
  • Support for messages up to 250 bytes.
  • 6-duo LED display to indicate bus status.
Recommendation / Restriction
  • Configuration through ETS tool from KNX association.

The product's benefits

Installation
  • The coupler can be programmed with ETS software from version ETS5.
Usage
  • Configurable one-button activation for special functions, e.g. transmit all group telegrams (useful during commissioning, automatic reset after a dedicated time)
Avantages
  • Can be used in different roles (line coupler, backbone, repeater) with the same hardware, as there are no differences in the hardware.
  • Capability to handle long messages up to 250 bytes in length.
  • 6-duo LED display for better network monitoring and diagnostics.

Technical characteristics

Bus system KNX Yes
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems None
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 2
Width 36 mm
Height 64.1 mm
Depth 90 mm

Documentation

2 documents
Technical Sheet
S000126607EN_1.pdf pdf (0.45 Mo)
