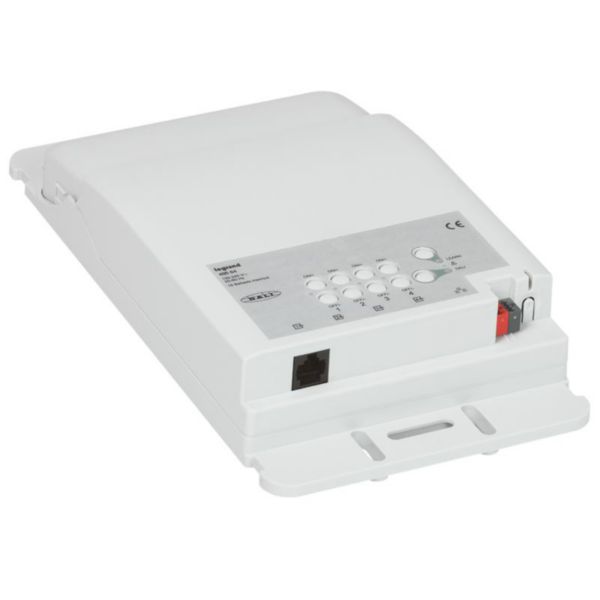

Name: KNX DALI broadcast dimming actuator - false ceiling
SKU: 048888

KNX DALI broadcast dimming actuator - false ceiling

LEGRAND

KNX DALI broadcast dimming actuator - false ceiling

REF. 048888 EAN. 3414970928351

Compare You can only compare 4 products, you must remove 1 to add this one

Can be installed in a false ceiling or on a suitable cable trayConnected with the BUS/KNX cable

Copper (wiring) saving due the installation of the acuator near to the loads
Because a broad range of KNX devices communicate with each other, (even if they are from different manufacturer) KNX technology answers to high demands for building thanks to endless flexibility and personalization

Bus system KNX	Yes
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	No
Mounting method	Other
Local operation/hand operation	Yes
With LED indication	Yes
Number of digital inputs	0

Max. switching power	0 W
Suitable for C-load	No
Max. number of switching contacts	0
Rated current	0.005 A
Rated operating voltage (Min-Max)	100-240 V
Different phases connectable	No
With bus connection	No
Bus module detachable	No
Modular expandability	No
Degree of protection (IP)	IP20

KNX DALI broadcast dimming actuator - false ceiling
