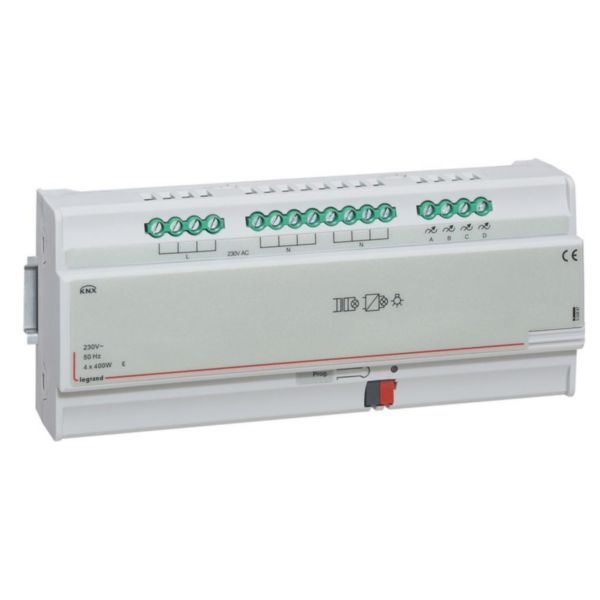

KNX controller dimming universal rlc din 4 outputs

LEGRAND

KNX controller dimming universal rlc din 4 outputs

REF. 002687 EAN. 3414970601520
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 4 outputs - 500 VA max each
  • DIN 12 modules
  • Power supply from KNX bus (= 12mA)
Recommendation / Restriction
  • Configuration through ETS tool from KNX association

The product's benefits

Installation
  • Connected with the BUS/KNX cable
Usage
  • Integrated automatic learning phase for theassociated loads (R, L or C type loads)
Avantages
  • Configuration of normal/timer operating mode and behaviour on reception of switch on command and/or configurable dimming command
  • Predefined configurable dimming values
  • Up to 15 configurable scenes

Technical characteristics

Bus system KNX Yes
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems None
Radio frequency bidirectional No
Model Control module
Mounting method Surface mounted
Width in number of modular spacings 4
With bus connection Yes
Bus module detachable No
Substation input No
Local operation/hand operation Yes
With LED indication Yes
Number of outputs 4
Output power (Min-Max) 10-400 W
Power boost suitable No
Type of load Universal
Max. control current 20 mA
Voltage (Min-Max) 207-253 V
Parallel-service possible No
Frequency (Min-Max) 50-60 Hz
Degree of protection (IP) IP20
Compatible with Casambi No

Documentation

2 documents
Technical Sheet
S000095126EN-1.pdf pdf (1.35 Mo)
Instruction Use
LE07511AC.pdf pdf (0.34 Mo)
1 document
Catalogue Commercial Page
ex223001_0896.pdf pdf (0.07 Mo)
2 documents
Firmware
ETS database zip (0.05 Mo)
Firmware
ETS database zip (8.46 Mo)
