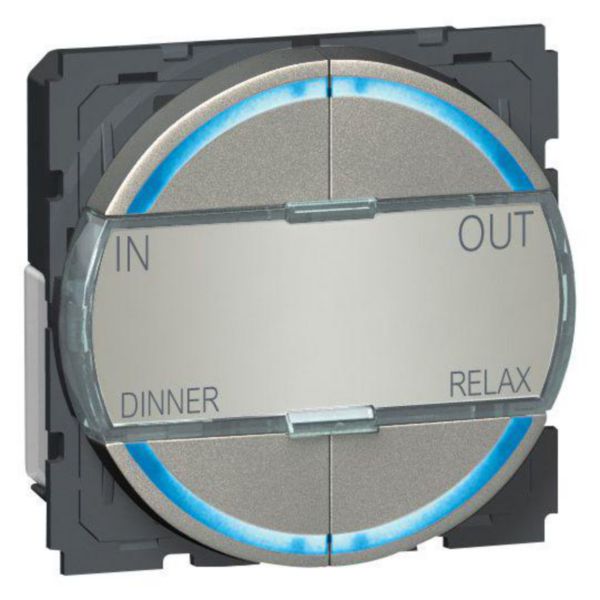

Name: KNX control unit - 4 buttons / 4 action points - Arteor round - magnesium
SKU: 573503

KNX control unit - 4 buttons / 4 action points - Arteor round - magnesium

LEGRAND

KNX control unit - 4 buttons / 4 action points - Arteor round - magnesium

REF. 573503 EAN. 3414970308245

Compare You can only compare 4 products, you must remove 1 to add this one

4 buttons with 4 action points control unit to control different system functions (eg : light, dimmer, shutter, HVAC, scenario, etc)
Fitted with programmable RGB LEDs (12 colours available) for displaying load status and system status feedback
Fitted with white key cover and supplied with label holder for button identification
Round version magnisium
To be fitted with ARTEOR plates and support frame

Configuration through ETS tool from KNX associationto be completed with ARTEOR plate

KNX mechanism completely suitable with the other parts of ARTEOR switch: support and cover plateConnected with the BUS/KNX cable

Function flexibility: the same command could be configured for different functions for better user experience

Advanced control allowing priority management, counting, enable/disable, double action, conditional action
RGB LED fully configurable in term of colors and blinking mode for displaying load status and system status feedback (normal, forced, override, day/night pilot light, etc.) and alarms
Because a broad range of KNX devices communicate with each other, (even if they are from different manufacturer) KNX technology answers to high demands for smart home or building thanks to endless flexibility and personalization

Bus system KNX	Yes
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Radio frequency bidirectional	No
Mounting method	Flush-mounted
With anti-theft/dismantling protection	No
With bus connection	Yes
Number of actuation points	4
Number of buttons	4
With LED indication	Yes
With label area	Yes
With display	No
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Glossy
Colour	Other

RAL-number (similar)	9011
Transparent	No
With room temperature controller	No
With IR sensor	No
Degree of protection (IP)	IP40
Min. depth of built-in installation box	55 mm
Width	45 mm
Height	45 mm
Depth	24 mm
degree of impact strength (IK)	Other
Operating / setting temperature (Min-Max)	-5-45 °C
Storage temperature (Min-Max)	-25-30 °C
Frequency (Min-Max)	0-0 Hz
Terminal marking indication	No
Halogen free	No
Antimicrobial treatment	No
Terminals capacity (Min-Max)	0.34-2.5 mm²
Cable nature for connection	Flexible or rigid
Programmable	Yes
