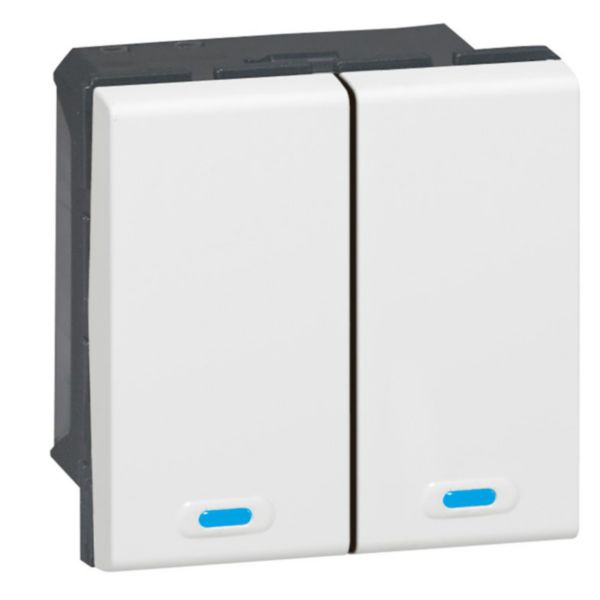

KNX control unit - 2 buttons / 4 action points - Mosaic - white

Name: KNX control unit - 2 buttons / 4 action points - Mosaic - white
SKU: 078496

Mosaic™ LEGRAND

REF. 078496 EAN. 3245060784966

Compare You can only compare 4 products, you must remove 1 to add this one

2 buttons with 4 action points control unit to control different system functions (eg : light, dimmer, shutter, HVAC, scenario, etc)
Fitted with programmable RGB LEDs (12 colours available) for displaying load status and system status feedback
Fitted with white key cover
To be fitted with MOSAIC plates and support frame

Configuration through ETS tool from KNX association to be completed with MOSAIC plate

KNX mechanism completely suitable with the other parts of MOSAIC switch: support and cover plate Connected with the BUS/KNX cable

Function flexibility: the same command could be configured for different functions for better user experience

Advanced control allowing priority management, counting, enable/disable, double action, conditional action
RGB LED fully configurable in term of colors and blinking mode for displaying load status and system status feedback (normal, forced, override, day/night pilot light, etc.) and alarms
Because a broad range of KNX devices communicate with each other, (even if they are from different manufacturer) KNX technology answers to high demands for smart home or building thanks to endless flexibility and personalization

Bus system KNX	Yes
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	None
Mounting method	Flush-mounted
With anti-theft/dismantling protection	No
With bus connection	Yes
Number of actuation points	4
Number of buttons	2
With LED indication	Yes

With label area	No
With display	No
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Glossy
Colour	White
RAL-number (similar)	9003
Transparent	No
With room temperature controller	No
With IR sensor	No
Degree of protection (IP)	IP40
