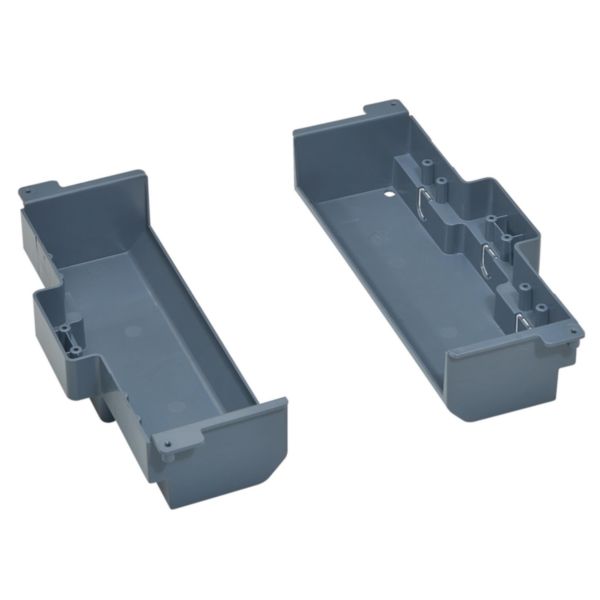

Kit of 2 electrical insulators for verticals supports 2x6 modules of standard and flush box

- LEGRAND

Kit of 2 electrical insulators for verticals supports 2x6 modules of standard and flush box

REF. 088027 EAN. 3414970755193
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product charateristics
  • Plastic material
  • Minimum depth required of the raised floor : - associated with a standard floor box : 81mm - associated with a flush floor box : 92mm
  • Pre - cut cables/pipes outputs to facilitate their installation
  • Cable clamps included
Recommendation / Restriction
  • Indoor use only.

The product's benefits

Installation
  • Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).
Usage
  • No risk of contact with the electrical connections when accessing the technical floor (during a maintenance operation for example)

Technical characteristics

Type of accessory/spare part Other

Documentation

4 documents
Technical Sheet
F03331EN-01.pdf pdf (4.14 Mo)
Technical Sheet
F03332FR-00.pdf pdf (2.73 Mo)
Technical Sheet
F03332EN-00.pdf pdf (2.89 Mo)
Technical Sheet
F03331FR-01.pdf pdf (4.16 Mo)
1 document
3D Autocad
3D_LG-088027.stp ifc (7.32 Mo)
