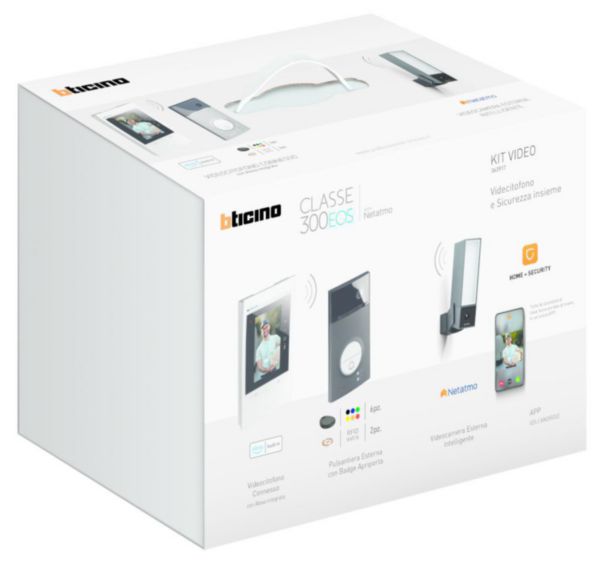

KIT CLASSE 300EOS WN + L3000 + OUT CAM

Name: KIT CLASSE 300EOS WN + L3000 + OUT CAM
SKU: BT-363950

BTICINO

REF. BT-363950 EAN. 8005543706343

Compare You can only compare 4 products, you must remove 1 to add this one

With video	Yes
Number of indoor stations	1
Number of outdoor stations	1
Number of call buttons	2
Installation technique	Bus system
Mounting method indoor station	Desktop device
Colour indoor station	White
Mounting method outdoor station	Surface mounted
Material outdoor station	Aluminium
Colour outdoor station	Grey
Picture system	PAL
Property picture system	Colour
Overhear protected	No
Can be connected to smartphone	Yes
Internal communication	Yes
Hands free	Yes
With day/night function	Yes
Opening angle camera	110 °
With memory function	Yes
Screen diagonal	127 mm
Screen diagonal (inch)	5 inch
Manual adjustable camera	Yes
Label space/information surface	Yes
Hearing aid compatible	No
Compatible with Apple HomeKit	No
Compatible with Google Assistant	Yes
Compatible with Amazon Alexa	Yes
IFTTT support available	Yes
Width	130 mm
Height	230 mm
Depth	40 mm
degree of impact strength (IK)	IK07
Degree of protection (IP)	IP54
Operating / setting temperature (Min-Max)	-25-70 °C
Storage temperature (Min-Max)	-10-70 °C
Voltage type	AC/DC
Nominal voltage (Min-Max)	20-27 V
Supply current (Min-Max)	0.04-1 A
Frequency (Min-Max)	50-60 Hz
Sound level	80 dB
Standby consumption	215 mA
Halogen free	Yes
Antimicrobial treatment	No

Cable nature for connection	Flexible or rigid
Cable section (Min-Max)	0.28-2.5 mm²
Fitted with USB plug	Yes
Fitted with rainproof plate protection	Yes
With complemantary luminous signal	Yes
Mounting method	Surface mounted/recessed mounted
Control mode	Wireless
Contains Batteries and/or Accumulator	No
Additional unit	Yes
Loudness setting	Yes
Addressable	Yes
Door entry system with mobile application	Yes
Number of ringtones	6
Remote opening of gate / Electric door opener	Yes
Screen resolution	1280x720
Screen brightness setting	Yes
Screen contrast setting	Yes
Memory video function	Yes
Camera type	Fixed
Video recorder angle	110 °
Max distance between internal and external unit	200 m
Communication rank type	Other
IEC code (Pack1)	Not applicable
Battery ou Accumulator (Pack1)	Not applicable
Element Composition (Pack1)	Not applicable
Number of Pack 1	0
Number of Single Element (Pack1)	0
IEC code (Pack2)	Not applicable
Battery ou Accumulator (Pack2)	Not applicable
Element Composition (Pack2)	Not applicable
Number of Pack 2	0
Number of Single Element (Pack2)	0
Connected object	Yes
Operating method	Wifi network 2.4G , SCS
Application store for download	Google Play Store
With voice command	Yes
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	Yes
Compatible voice assistants	Amazon Alexa
Application name	Home + Security , Home + Control
Product use function	Door entry systems
Programming way	Smartphone apps

2 documents

Select all

Catalogue Technical Page

ex223001_0858.pdf pdf (0.41 Mo)

Catalogue Commercial Page

ex223001_0854.pdf pdf (0.08 Mo)

1 document

Select all

Agreement

Decl. UE RED-70-442-02 (0.17 Mo)
