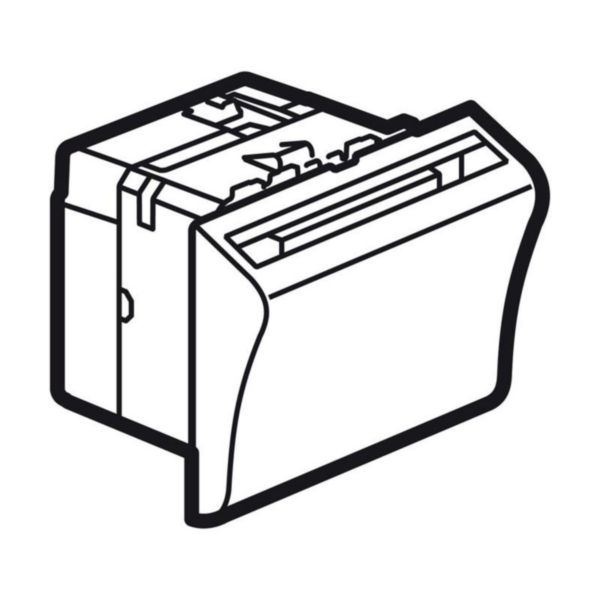

Key card switch RFID BUS magnesium

Name: Key card switch RFID BUS magnesium
SKU: 572736

Arteor™ LEGRAND

REF. 572736 EAN. 3245065727364

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	No
Other bus systems	Other
Radio frequency bidirectional	No
Mounting method	Flush-mounted
With anti-theft/dismantling protection	No
With bus connection	Yes
Number of actuation points	1
Number of buttons	1
With LED indication	Yes
With label area	No
With display	No
Material	Plastic
Material quality	Thermoplastic
Surface protection	Untreated
Surface finishing	Matt
Colour	Aluminium
RAL-number (similar)	9011

Transparent	No
With room temperature controller	No
With IR sensor	No
Degree of protection (IP)	Other
Min. depth of built-in installation box	55 mm
degree of impact strength (IK)	Other
Operating / setting temperature (Min-Max)	-10-45 °C
Storage temperature (Min-Max)	-10-70 °C
Frequency (Min-Max)	0-0 Hz
Standby consumption	5 mA
Terminal marking indication	No
Halogen free	No
Antimicrobial treatment	No
Terminals capacity (Min-Max)	0.34-2.5 mm²
Cable nature for connection	Flexible or rigid
Addressable	Yes
Contains Batteries and/or Accumulator	No
Connected object	No
Operating method	SCS
Programming way	Configurator
Programmable	Yes
