Name: Keor Compact 20kVA with internal batteries
SKU: 311105

Keor Compact 20kVA with internal batteries

Keor COMPACT LEGRAND

Keor Compact 20kVA with internal batteries

REF. 311105 EAN. 3414972095877

Compare You can only compare 4 products, you must remove 1 to add this one

The system is for indoor installation. Relative humidity 20-90% not condensing, operating temperature 0-40°C.

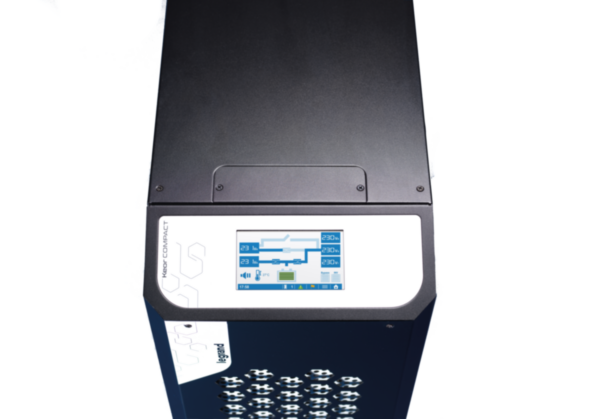

Userfriendly touch sceen, complete distribution panel, full communication interface port

Input voltage (Min-Max)	320-480 V
Primary frequency (Min-Max)	40-70 Hz
Number of phases primary	3
Output voltage (Min-Max)	380-415 V
Secondary frequency (Min-Max)	50-60 Hz
Output effective power	18000 W
Output apparent power	20000 VA
USB interface	Yes
With communication interface RS-232	Yes
Number of phases secondary	3
SNMP	Yes
Voltage type	AC
Height	890 mm
Width	260 mm
Depth	850 mm
Weight	176 kg
Bridging time full load	0 min
Suitable for network-management	Yes
USV- technology	Online
Construction type	Freestanding model
Modular	No

Max. voltage distortion output (linear load)	2 %
Output power factor	0.9
Overall efficiency	94.5 %
Efficiency in eco-mode	98 %
Potential free switch contact	Yes
Auto shut down function	Yes
Input connection	Fixed connection
Number of output connections C13	0
Number of output connections C19	0
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets with protective contact CEE 7/5 (type E)	0
Number of output connections fixed connection	1
Degree of protection (IP)	IP20
Operating / setting temperature (Min-Max)	0-40 °C
Storage temperature (Min-Max)	-20-70 °C
Supply current (Min-Max)	27.8-30.4 A
Sound level	52 dB
Terminal marking indication	Yes
Type of load	Universal and LED Retrofit
With socket outlet	No
Contains Batteries and/or Accumulator	Yes

Keor Compact 20kVA with internal batteries
