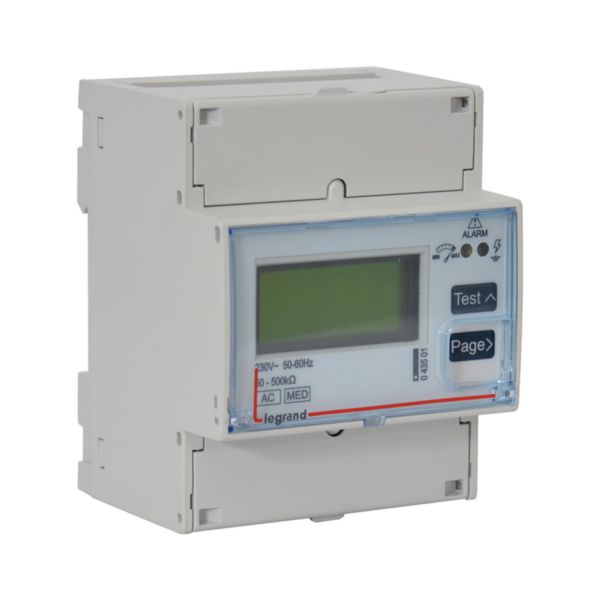

IT medical modular permanent isolation controller 230 V - RS485

Name: IT medical modular permanent isolation controller 230 V - RS485
SKU: 043501

LEGRAND

REF. 043501 EAN. 3414970972071

Compare You can only compare 4 products, you must remove 1 to add this one

Type of electric connection	Screw connection
With detachable clamps	No
Function	For AC-current system
Supply voltage AC 50 Hz (Min-Max)	197-253 V
Supply voltage AC 60 Hz (Min-Max)	197-253 V
Rated operating frequency (Min-Max)	47-63 Hz
Line capacity	0.5 µF
Response value impedance 1 (Min-Max)	10-600 kOhm

Indication of insulation value	Yes
Error registration possible	No
Number of contacts as normally closed contact	2
Number of contacts as normally open contact	2
Voltage type (operating voltage)	AC
Width	70 mm
Height	89.5 mm
Depth	65.6 mm

4 documents

Select all

Instruction Use

LE08381AA.pdf pdf (0.61 Mo)

Technical Sheet

F02468EN-00.pdf pdf (1.13 Mo)

Technical Sheet

F02468FR-00.pdf pdf (1.01 Mo)

Technical Guide

LE08385AA.pdf pdf (1.32 Mo)

1 document

Select all

Catalogue Commercial Page

ex223001_1215.pdf pdf (0.13 Mo)

1 document

Select all

3D Autocad

043501.dwg dwg (0.1 Mo)
