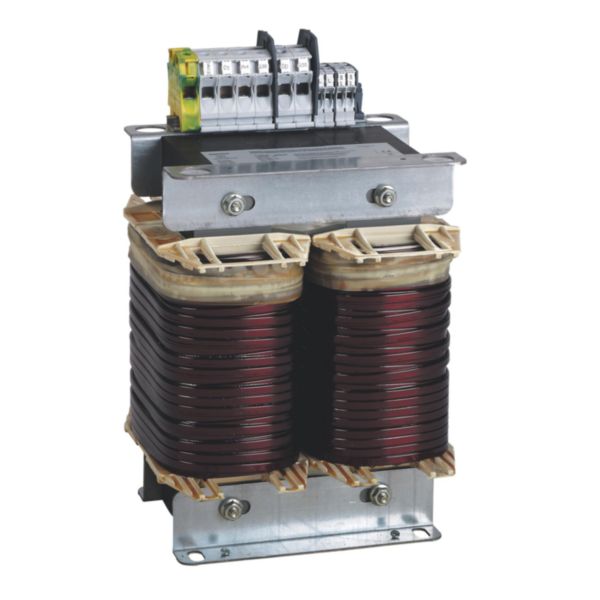

Isolating transfo for hospitals - IP 00 -1 phase- prim 230 V / sec 230 V -output 6.3 kVA

LEGRAND

Isolating transfo for hospitals - IP 00 -1 phase- prim 230 V / sec 230 V -output 6.3 kVA

REF. 042594 EAN. 3414970971456
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • Isolating transformers for hospitals - Conform to standard IEC EN 61558 - 2 - 15 - The main requirements of this standard, additionally to IEC 61558 - 2 - 4, concern : - secondary/earth leakage current, limited to 0,5 mA off - load - inrush current, limited to 12 times the peak value of primary current - Electrostatic shield linked to dedicated terminal - Equipped with a temperature monitoring system, and outputs on dedicated terminals
  • Single-phasePrimary : 230 V~ / Secondary : 230 V~ with centre tap - Equipped with two temperature monitoring systems (bi - metal strips and thermocouple PT 100) , making them compatible with any medical control system - IP 00 - Output : 6.3 kVA - Terminal primary flexible cable : 35 mm² - Terminal secondary flexible cable : 35 mm²

Technical characteristics

Built as safety transformer No
Built as isolating transformer Yes
Built as energy saving transformer No
Primary voltage 1 230-230 V
Secondary voltage 1 230-230 V
Rated apparent power 6300 VA
Type of insulation material according to IEC 85 H
Short-circuit-proof No
Relative short circuit voltage 2.8 %
Width 240 mm
Height 390 mm
Depth 250 mm
Degree of protection (IP) IP00
Ring core No
Suitable for mounting on PCB No
Suitable for distribution board No
