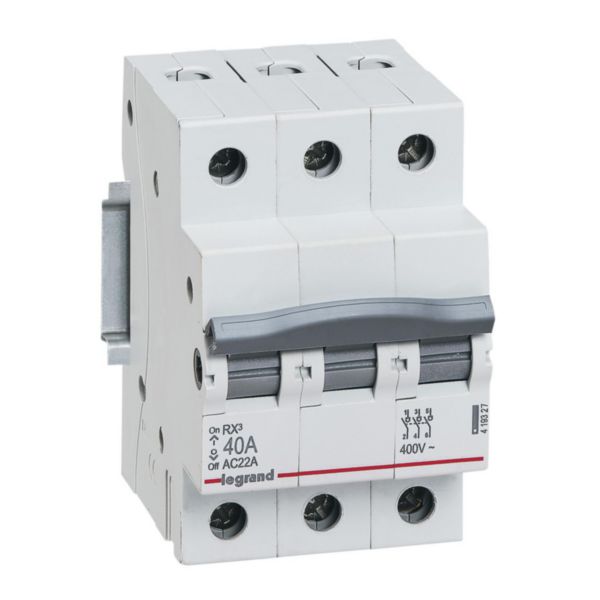

Isolating switch RX³ 3P 40A

Name: Isolating switch RX³ 3P 40A
SKU: 419327

RX³ LEGRAND

REF. 419327 EAN. 3414972037921

Compare You can only compare 4 products, you must remove 1 to add this one

Rated current 40 A Category of use AC - 22A Rated voltage 400V~
Can be supplied either by wire, prong busbar (top side or bottom side) or fork busbar (bottom side)
This device complies with substance - restriction requirements and has been designed in an environmentally conscious process.

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Version as main switch	Yes
Version as maintenance-/service switch	No
Version as safety switch	No
Version as emergency stop installation	No
Version as reversing switch	No
Number of switches	1
Max. rated operation voltage Ue AC	400 V
Rated operating voltage	400-400 V
Rated permanent current Iu	40 A
Rated short-time withstand current lcw	0.48 kA
Switching power at 400 V	16 kW
Number of poles	3
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as change-over contact	0
Motor drive optional	No
Motor drive integrated	No
Voltage release optional	No
Device construction	Complete device in housing
Suitable for floor mounting	No
Suitable for front mounting 4-hole	No
Suitable for front mounting centre	No
Suitable for distribution board installation	Yes

Suitable for intermediate mounting	No
Colour control element	Grey
Interlockable	No
Type of electrical connection of main circuit	Cable clamp
Degree of protection (IP), front side	IP20
Degree of protection (NEMA)	1
Width	53.1 mm
Height	83 mm
Depth	76.6 mm
degree of impact strength (IK)	Not applicable
Operating / setting temperature	-25-40 °C
Storage temperature	-40-70 °C
Voltage type	AC
Electric supplying direction	By the top or bottom
Terminal marking indication	No
Colour	Grey
RAL-number	7035
Halogen free	Yes
Connection type	Cable
Label space/information surface	No
Contains Batteries and/or Accumulator	No
IEC code (Pack1)	Not applicable
