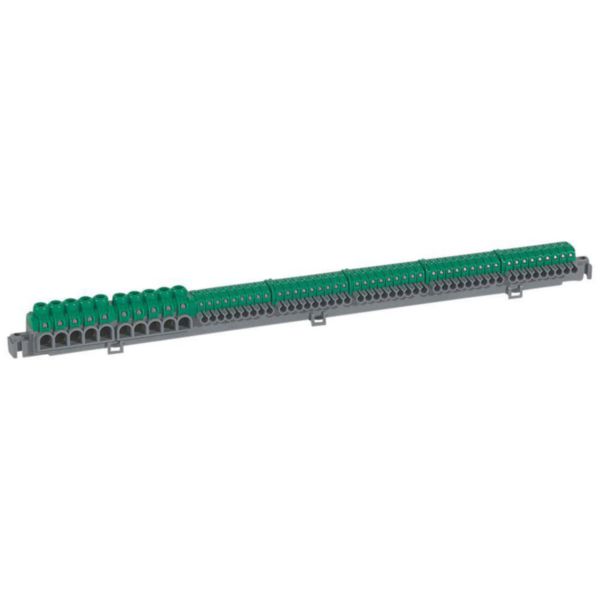

IP2X Automatic connection Terminal block- Earth (green) - 10 screw terminals + 45 auto terminals

Name: IP2X Automatic connection Terminal block- Earth (green) - 10 screw terminals + 45 auto terminals
SKU: 005054

LEGRAND

REF. 005054 EAN. 3245060050542

Compare You can only compare 4 products, you must remove 1 to add this one

Number of poles	55
Nominal current	90 A
Connection type	Without screws
Mounting method	DIN rail
Number of inputs	10
Number of outputs	45
Suitable for solid conductors	Yes
Suitable for stranded conductors	Yes
Suitable for fine strand conductors	No
Suitable for fine strand conductors without cable end sleeve	No
Suitable for extra fine-strand conductors	No
Suitable for extra fine-strand conductors without cable end sleeve	No

Conductor cross section, input	6-35 mm²
Conductor cross section, output	1.5-4 mm²
Contact safe	Yes
Height	30 mm
Width	385 mm
Depth	16 mm
Degree of protection (IP)	IP2X
Operating / setting temperature	-5-40 °C
Storage temperature	-25-70 °C
Type of distribution blocks	Earth
Terminals capacity	1.5-25 mm²
Label space/information surface	No
