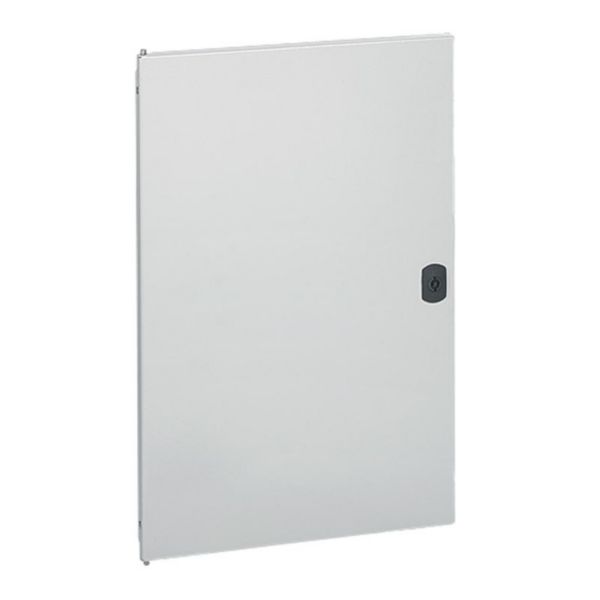

Internal door - for Atlantic cabinet height 800 mm x width 600 mm - RAL 7035

Name: Internal door - for Atlantic cabinet height 800 mm x width 600 mm - RAL 7035
SKU: 036319

LEGRAND

REF. 036319 EAN. 3414970795113

Compare You can only compare 4 products, you must remove 1 to add this one

Equipment for Atlantic metal cabinets
Metallic internal doors - Metallic internal doors RAL 7035 - For direct mounting In =tlantic metal and stainless steel cabinets - IPXXB - Reversible door with captiv hinge pins - Double bar lock - Can be equipped with other key barrels and metal rebate locks. Distance between cabinet door and internal door : 55 mm - For cabinets Height x Width : 800 x 600 mm - Door dimensions Height x Width : 734 x 548 mm - Door usable dimensions Height x Width : 706 x 542 mm

Model	Inner door
Version as glazed door	No
Version as door for disconnecting switch interlocking	No
Width	548 mm
Height	734 mm
Depth	17 mm

1 document

Select all

Instruction Use

LE07566AA-01.pdf pdf (1.24 Mo)

2 documents

Select all

Catalogue Technical Page

ex223001_0420-0421.pdf pdf (0.28 Mo)

Catalogue Commercial Page

ex223001_0417.pdf pdf (0.06 Mo)

1 document

Select all

3D Autocad

036319.dwg dwg (0.05 Mo)
