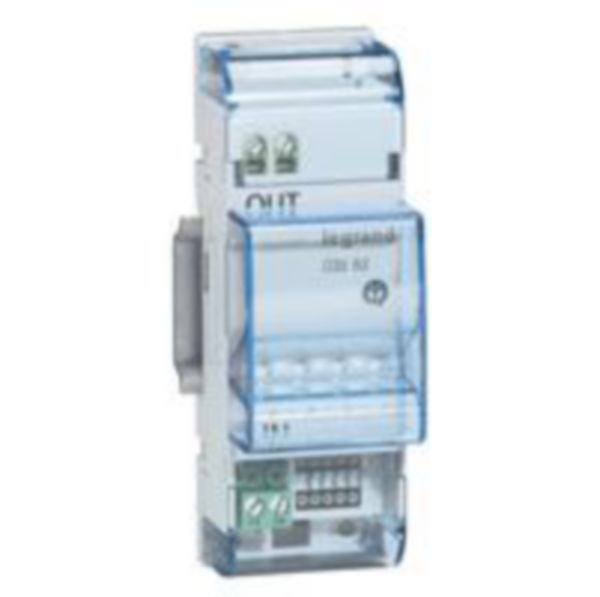

Interface between SCS BUS based systems.

Name: Interface between SCS BUS based systems.
SKU: F422

My Home Up BTICINO

REF. F422 EAN. 8012199490854

Compare You can only compare 4 products, you must remove 1 to add this one

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	Yes
Bus system LON	No
Bus system Powernet	No
Other bus systems	Other
Model	Other
Mounting method	DRA (DIN-rail adaptor)
Width in number of modular spacings	2
Demounting protection	No
With LED indication	Yes
Updateable	No
Operating voltage (Min-Max)	27-27 V
Protocol	Other
Provider dependent	No
Visualization	No
Web-Server	No
Radio interface	No
IR interface	No

Degree of protection (IP)	IP20
Width	35.6 mm
Height	105 mm
Depth	30.35 mm
Operating / setting temperature (Min-Max)	5-55 °C
Storage temperature (Min-Max)	-25-70 °C
Terminal marking indication	Yes
Type of load	Not applicable
Halogen free	Yes
Connection type	Screwed terminal
Terminals capacity (Min-Max)	0.5-1.5 mm²
Connected object	No
Application store for download	App Store , Google Play Store
With voice command	Yes
Programmable	No
Interoperable connection Protocol	No
Connectable by Internet box	No
Programming way	Smartphone apps
