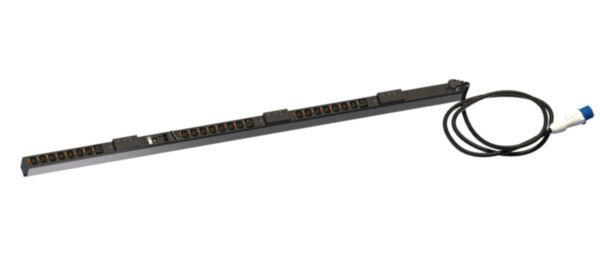

Intelligent PDU, switched (Base version), Zero-U, 1 phase 32A, 21 C13 outlets + 3 C19 outlets, with cord locking

Name: Intelligent PDU, switched (Base version), Zero-U, 1 phase 32A, 21 C13 outlets + 3 C19 outlets, with cord locking
SKU: 646124

Linkeo LEGRAND

REF. 646124 EAN. 3414972245975

Compare You can only compare 4 products, you must remove 1 to add this one

1 phase - 32A - Max power 7,4kW

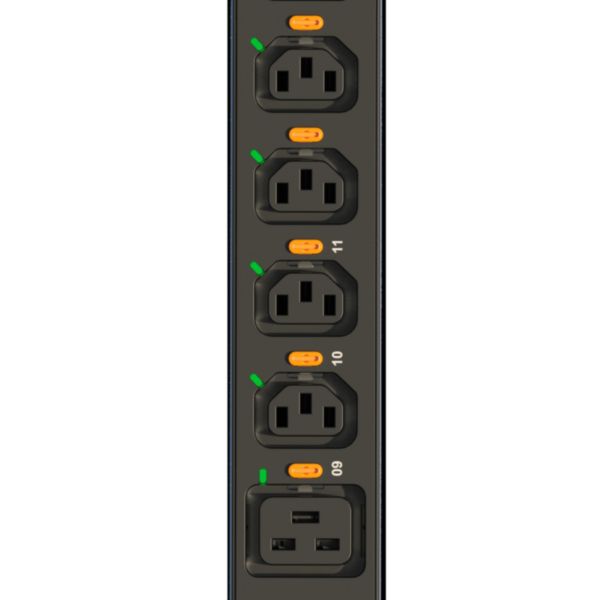

21 C13 outlets + 3 C19 outlets, with cord locking system
Metering at inlet and circuit level with +/ - 1% accuracy (Voltage, Current, Active Power, Apparent Power, Energy, Power Factor)
Outlets switching. Remotely on/off control of each outlet via the Web User Interface.
To be linked with a Node PDU version to enable remote access to all measurements and alerts.

A Base PDU version needs to be linked with a Node PDU version to enable remote access to all measurements and alerts.

Easy installation thanks to the 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet. Numbered outlets to ease the identification of each server. Supplied with 2 sets of metal fixings: button for screwless fixing, or standard screw-type brackets.

Reduce your CAPEX and deploy intelligent PDUs without the need to have a PDU controller in every unit. Reduce your OPEX by daisy-chaining up to 31 base PDUs downstream to a node PDU to save switch ports connections. User-friendly and responsive Web User Interface. Metering, outlet Control and peripherals data at glance. Easy to configure. Data aggregation capabilities in DCIM.

2 levels of alerts physically visible on the PDU (LED bar) and remotely (web interface and email/sms alert configuration)
Possibility to add up to 8 wireless sensors (temperature, humidity...) for environmental monitoring. Using wireless sensors reduce deployment and maintenance time.
Upgradeable to a Node PDU version by adding a Node controller (ref. 646130)

Mounting dimension (standardised)	Metric
Mounting size	1593 mm
Mounting direction	Vertical
Electrical connection	Connection cable with plug
Type of electric connection	CEE 32 A
Number of phases	1
Cable length	3 m
Number of miniature circuit breakers (MCB)	3
Number of socket outlets with protective contact CEE 7/3 (type F)	0
Number of socket outlets with protective contact CEE 7/5 (type E)	0
Number of C13 socket outlets	21
Number of C19 socket outlets	3
Number of C20 socket outlets	0
Number of socket outlets British Standard BS 1363	0
Number of socket outlets Swiss standard type 13	0
Number of socket outlets Swiss standard type 15	0
Number of socket outlets Swiss standard type 23	0
Number of socket outlets Swiss standard type 25	0
Number of RJ45 connections	2
Number of USB connections	0
Number of other socket outlets	0
Length	1581 mm
Width	44.3 mm
Depth	65.9 mm
Nominal current	32 A
Supply voltage	230 V
With surge protection module	No
Overvoltage category	2
Mains filter	No
Switchable	Yes
With meter	Yes
Control function	Yes
SNMP	Yes
With display	No

Evaluation	Other
With LED indication	Yes
With fuse	No
Ampere meter	Yes
Temperature measurement	Yes
With mounting material	Yes
Colour	Black
degree of impact strength (IK)	Not applicable
Degree of protection (IP)	IP40
Operating / setting temperature	-5-60 °C
Storage temperature	-20-70 °C
Voltage type	AC
Supply current	32-32 A
Frequency	50-60 Hz
Terminal marking indication	No
RAL-number	9017
Connection type	Screwed terminal
Terminals capacity	6-6 mm²
Cable nature for connection	Flexible
Cable section	6-6 mm²
Maximum Input cable diameter	19 mm
Number of MCBs	2
Number of RCCBs	0
Number of CX socket outlets	0
Connected object	Yes
Operating method	Network , Zigbee
Application store for download	Not applicable
With voice command	No
Programmable	Yes
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Programming way	Web software
Product use function	Energy distribution
