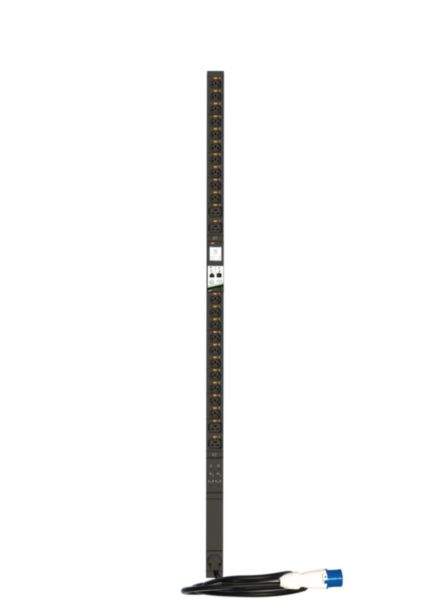

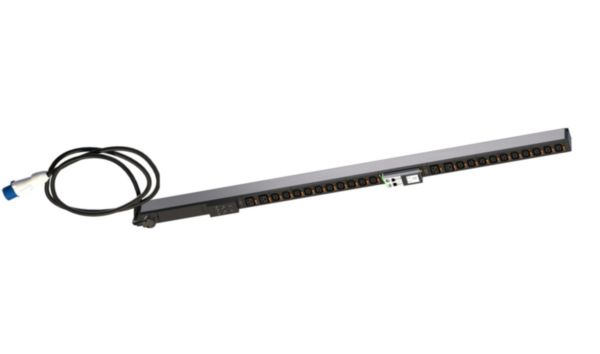

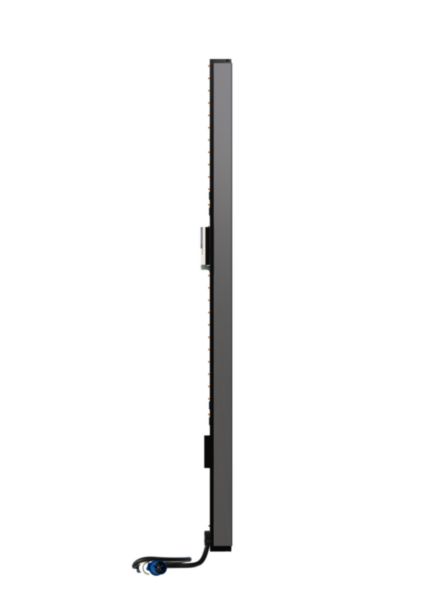

Name: Intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 20 C13 outlets + 4 C19 outlets, with cord locking
SKU: 646105

Intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 20 C13 outlets + 4 C19 outlets, with cord locking

Linkeo LEGRAND

Intelligent PDU, metered (Node version), Zero-U, 1 phase 32A, 20 C13 outlets + 4 C19 outlets, with cord locking

REF. 646105 EAN. 3414972245890

Compare You can only compare 4 products, you must remove 1 to add this one

1 phase - 32A - Max power 7,4kW
20 C13 outlets + 4 C19 outlets, with cord locking system
Metering at inlet and circuit level with +/ - 1% accuracy (Voltage, Current, Active Power, Apparent Power, Energy, Power Factor)
Supplied with a hot swappable full IP controller (NODE) with LCD screen to manage and view information locally, and with a Ethernet port for connection to LAN and remote control.
3 m power supply cord with IEC 60309 32A plug

Easy installation thanks to the 330° rotating cable input for a perfect orientation of the cable and no interference in the cabinet. Numbered outlets to ease the identification of each server. Supplied with 2 sets of metal fixings: button for screwless fixing, or standard screw-type brackets.

Reduce your CAPEX and deploy intelligent PDUs without the need to have a PDU controller in every unit. Reduce your OPEX by daisy-chaining up to 31 base PDUs downstream to a node PDU to save switch ports connections. User-friendly and responsive Web User Interface. Metering, outlet Control and peripherals data at glance. Easy to configure. Data aggregation capabilities in DCIM.

2 levels of alerts physically visible on the PDU (LED bar) and remotely (web interface and email/sms alert configuration)
Possibility to add up to 8 wireless sensors (temperature, humidity...) for environmental monitoring. Using wireless sensors reduce deployment and maintenance time.

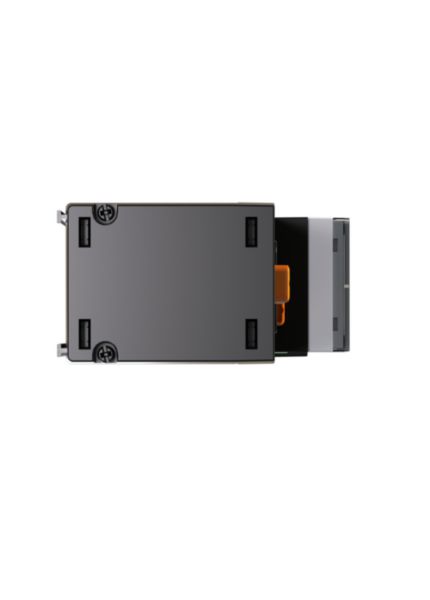

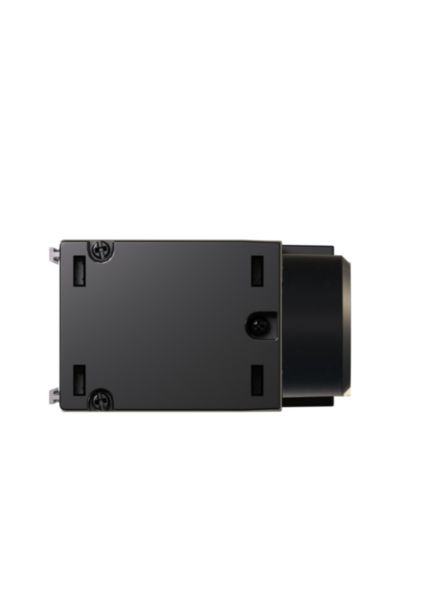

Node controller is hot swappable to allow maintenance or replacement without powering down connected equipment

Mounting dimension (standardised)	Metric
Mounting size	1326 mm
Směr montáže	Vertical
Electrical connection	Connection cable with plug
Type of electric connection	CEE 32 A
Počet fází	1
Cable length	3 m
Number of miniature circuit breakers (MCB)	2
Počet zásuvek s ochranným kontaktem (SCHUKO)	0
Number of socket outlets with earth pin	24
Number of C13 socket outlets	20
Number of C19 socket outlets	4
Number of C20 socket outlets	0
Počet zásuvek Britský standard BS1363	0
Počet zásuvek švýcarský standard typ 13	0
Počet zásuvek švýcarský standard typ 15	0
Počet zásuvek Švýcarský standard typ 23	0
Počet zásuvek Švýcarský standard typ 25	0
Number of RJ45 sockets	2
Number of USB connections	2
Number of other socket outlets	0
Length	1314 mm
Width	44.3 mm
Depth	83.7 mm
Supply voltage	230 V
With surge protection module	No
Over voltage category	2
Odrušovací síťový filtr	No
Switchable	No
With meter	Yes
Řídící funkce	No
SNMP	Yes
S displejem	Yes

Evaluation	Other
S LED-ukazatelem	Yes
With fuse	No
Ampérmetr	Yes
Temperature measurement	Yes
With mounting material	Yes
Barva	Black
Rázová pevnost	Not applicable
Stupeň krytí (IP)	IP40
Provozní teplota	-5-60 °C
Storage temperature	-20-70 °C
Druh napětí	AC
Supply current	32-32 A
Frekvence	50-60 Hz
Terminal marking indication	No
Číslo RAL	9017
Způsob připojení	Screwed terminal
Terminals capacity	6-6 mm²
Cable nature for connection	Flexible
Cable section	6-6 mm²
Maximum Input cable diameter	19 mm
Number of MCBs	2
Number of RCCBs	0
Number of CX socket outlets	0
Connected object	Yes
Typ ovládání	Network , Zigbee
Application store for download	Not applicable
S hlasovým ovládáním	No
Programovatelné	No
Interoperable connection Protocol	Yes
Connectable by Internet box	Yes
Programming way	Web software
Product use function	Energy distribution
