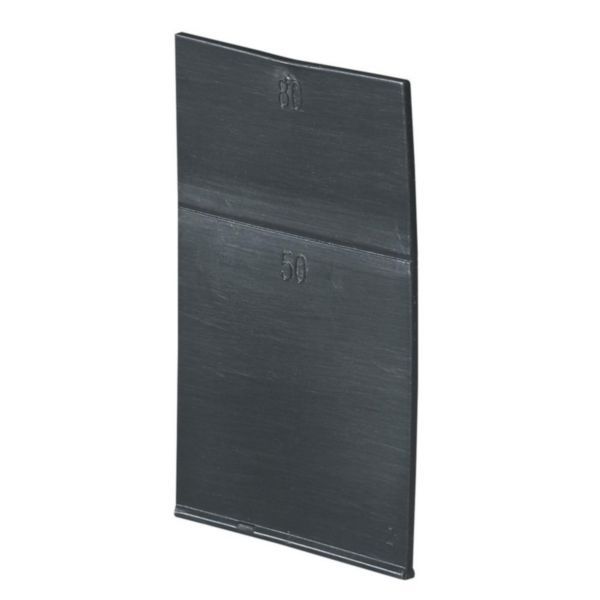

Insulating shields (3) - for DRX - 4P

LEGRAND

Insulating shields (3) - for DRX - 4P

REF. 027182 EAN. 3245060271824
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • DRX 250 - thermal magnetic MCCBs from 125 to 250 A - For switching, control, isolation and protection of low - voltage electrical lines - Can be fitted with auxiliaries - Supplied with : - M8 terminals - Fixing screws - Insulating shields (2 for 3P and 3 for 4P) - Fixed thermal and magnetic - Conform to IEC 60947 - 2
  • Connection Accessories Insulating shields - Used to isolate the connection between each pole - 4P - Set of 3

Documentation

1 document
Instruction Use
Y1217H.pdf pdf (0.65 Mo)
6 documents
Catalogue Technical Page
ex223001_0141.pdf pdf (0.04 Mo)
Catalogue Technical Page
ex223001_0139.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0133.pdf pdf (0.16 Mo)
Catalogue Commercial Page
ex223001_0132.pdf pdf (0.13 Mo)
Catalogue Technical Page
ex223001_0136.pdf pdf (0.07 Mo)
Catalogue Technical Page
ex223001_0138.pdf pdf (0.05 Mo)
1 document
3D Autocad
027182.dwg dwg (0.1 Mo)
