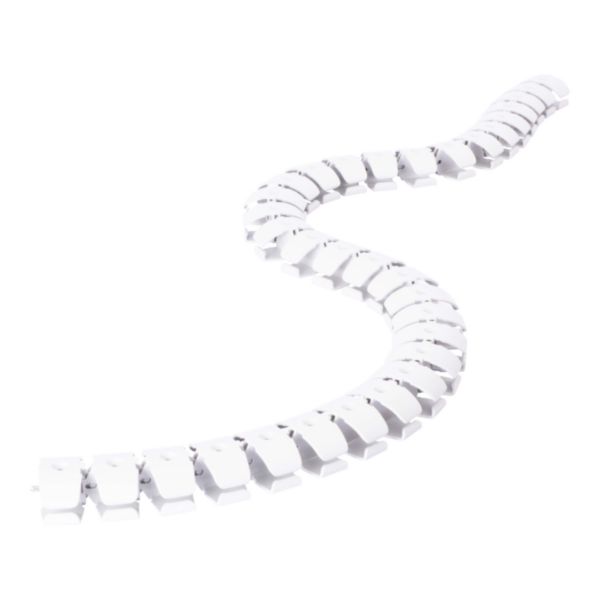

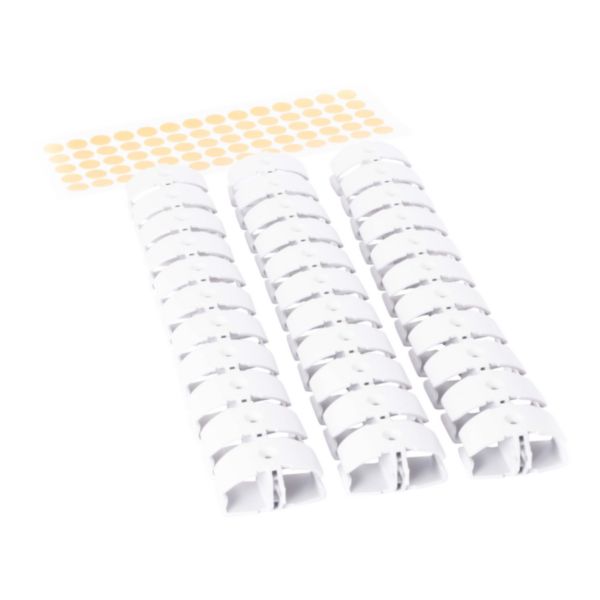

Incara Vertebra 2 compartments grey finish

Incara Vertebra LEGRAND

Incara Vertebra 2 compartments grey finish

REF. 654992 EAN. 3414971972858
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • 2 compartments
  • 2 positions : rigid or flexible
  • Can be fixed using screws under the work surface
  • Can be fixed under the table using provided double side tape
  • IK07

The product's benefits

Installation
  • Two fixing modes
Usage
  • Allow an easy segregation of power and data cords
Avantages
  • Rigid position for a 1 axis rotation ; flexible position for a 2 axes rotation

Technical characteristics

Height 27 mm
Width 54 mm
Length 1200 mm
Usable cross section 820 mm²
Lowest bending radius horizontal 80 mm
Lowest bending radius vertical 50 mm
Material Plastic
Material quality Other
Colour Grey
RAL-number 7035
Number of permanent partitions 1
Type of fastening Self-adhesive and bottom perforation
degree of impact strength (IK) IK07

Documentation

3 documents
Technical Sheet
F03324FR-01.pdf pdf (2.56 Mo)
Instruction Use
LE12110AA.pdf pdf (1.99 Mo)
Technical Sheet
F03324EN-00.pdf pdf (2.56 Mo)
1 document
Catalogue Commercial Page
ex223001_1115.pdf pdf (0.32 Mo)
