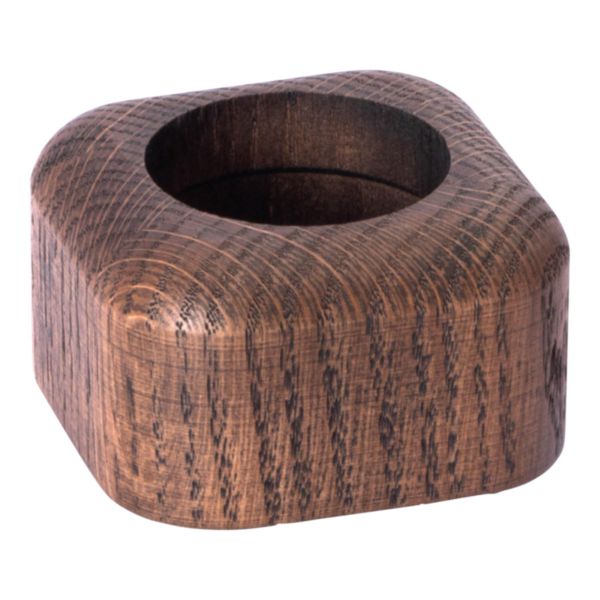

Name: Incara Electr'On 1 gang wood cover
SKU: 654931

Incara Electr'On 1 gang wood cover

Incara Electr'On LEGRAND

Incara Electr'On 1 gang wood cover

REF. 654931 EAN. 3414971975286

Compare You can only compare 4 products, you must remove 1 to add this one

Antimicrobial treatment	No
Assembly arrangement	Surface mounted box
Suitable for mounting over existing flush-mounted box	No
Suitable for modular domestic switching devices	No
Number of units	1
Mounting direction	Horizontal and vertical
Shape	Square
Desktop device	Yes
Material	Wood
Material quality	Other
Halogen free	Yes
Surface protection	Lacquered
Surface finishing	Matt
Colour	Wood
Transparent	No
With cover frame	No

Cross-trunking mounting	No
With duct entry	No
With cable entry	Yes
With screw gland entry	No
With installation tube entry	No
Inlet from the rear	Yes
Number of inlets	1
Number of earthing terminals	0
Shock resistant	Yes
Degree of protection (IP)	IP20
Width	76 mm
Height	76 mm
Depth	66.3 mm
degree of impact strength (IK)	IK07
Operating / setting temperature (Min-Max)	-5-36 °C
Storage temperature (Min-Max)	-10-70 °C

3 documents

Select all

Instruction Use

LE12111AA-02.pdf pdf (0.24 Mo)

Technical Sheet

F03359EN-02.pdf pdf (1.9 Mo)

Technical Sheet

F03359FR-01.pdf pdf (1.8 Mo)

3 documents

Select all

Catalogue Commercial Page

ex223001_1123.pdf pdf (0.13 Mo)

Catalogue Commercial Page

ex223001_1111.pdf pdf (0.09 Mo)

Catalogue Technical Page

ex223001_1112.pdf pdf (0.08 Mo)

Incara Electr'On 1 gang wood cover
