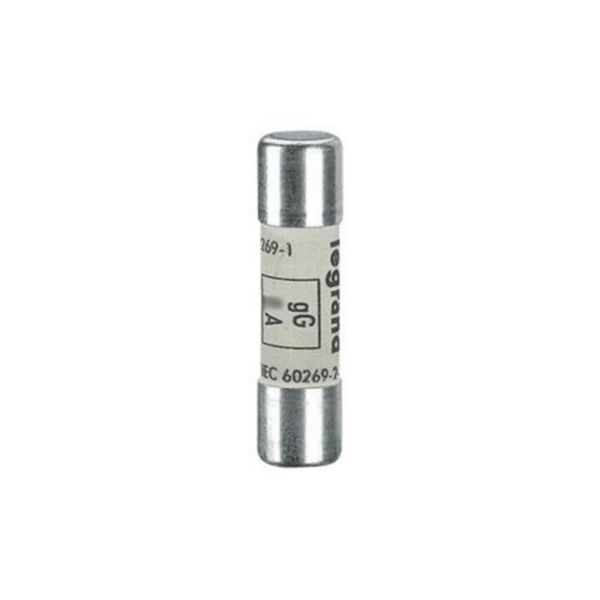

HRC cartridge fuse - cylindrical type gG 10 x 38 - 25 A - with indicator

LEGRAND

HRC cartridge fuse - cylindrical type gG 10 x 38 - 25 A - with indicator

REF. 013425 EAN. 3245060134259
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • HRC cartridge fuses
  • Cylindrical type gG - Conform to EN 60269 - 1, IEC 60269 - 1 and 210 x 38 HRC - With indicator - Rating : 25 Amps - Voltage ~ : 500 Volts - Rupture capacity : 100000 Amps

Technical characteristics

Model Ceramic fuse
Size 10x38 mm
Rated current 25 A
Depth 38 mm
Width 10 mm
Voltage type AC
Utilization category according to IEC 60269 GG
Rated operating frequency 50-60 Hz
Type of fuse status indicator Top fuse status indicator
Power loss at rated current 2.7 W
Operating / setting temperature -25-40 °C
Storage temperature -40-70 °C

Documentation

2 documents
Technical Sheet
F00192EN-10.pdf pdf (1.54 Mo)
Technical Sheet
F00192FR-10.pdf pdf (1.54 Mo)
3 documents
Catalogue Technical Page
ex223001_0263.pdf pdf (0.05 Mo)
Catalogue Commercial Page
ex223001_0261.pdf pdf (0.1 Mo)
Catalogue Commercial Page
ex223001_0264.pdf pdf (0.05 Mo)
