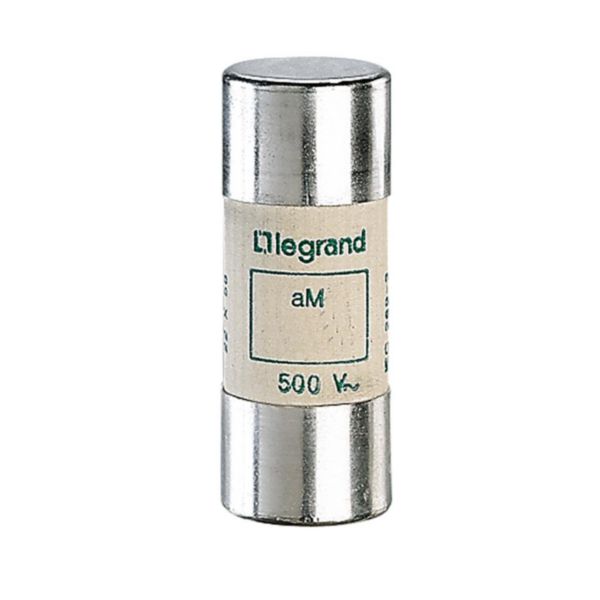

HRC cartridge fuse - cylindrical type aM 22 X 58 - 80 A - without indicator

LEGRAND

HRC cartridge fuse - cylindrical type aM 22 X 58 - 80 A - without indicator

REF. 015080 EAN. 3245060150808
Download product sheet
You can only compare 4 products, you must remove 1 to add this one
Product characteristics
  • HRC cartridge fuses
  • Cylindrical type aM (motor rated) - Conform to EN 60269 - 1, IEC 60269 - 1 and 222 x 58 HRC - Without striker - Rating : 80 Amps - Voltage ~ : 500 Volts - Rupture capacity : 100000 Amps

Technical characteristics

Model Ceramic fuse
Size 22x58 mm
Rated current 80 A
Depth 58 mm
Width 22 mm
Voltage type AC/DC
Utilization category according to IEC 60269 AM
Rated operating frequency 42-62 Hz
Type of fuse status indicator Other
Power loss at rated current 7.4 W
Operating / setting temperature -25-40 °C
Storage temperature -40-70 °C
