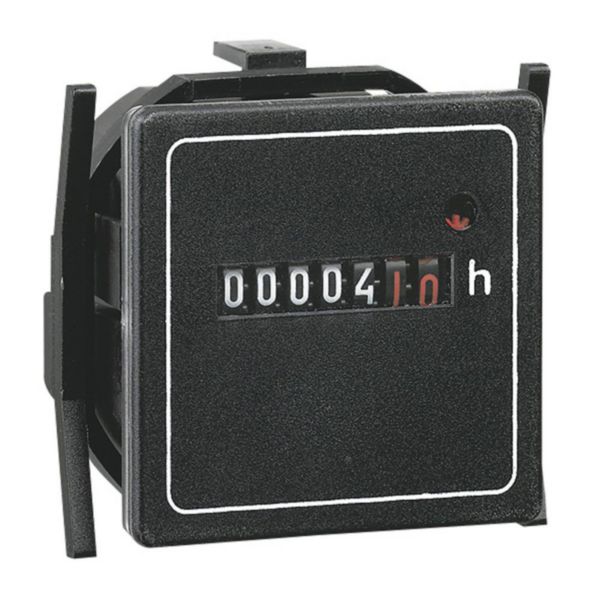

Hour counter - IP 40 - 200 to 240 V~ - 50 HZ

LEGRAND

Hour counter - IP 40 - 200 to 240 V~ - 50 HZ

REF. 049555 EAN. 3245060495558
Analog device for measuring the operating hours of an electrical equipment to be installed on a cabinet door, this analogue hour counter offers 200V to 240V~50Hz drive, 99999.99h totalizing without reset, IP40 front mounting.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Analog device for measuring the operating hours of an electrical equipment to be installed on a cabinet door, this analogue hour counter offers 200V to 240V~50Hz drive, 99999.99h totalizing without reset, IP40 front mounting.

Product characteristics
  • Electrical energy metering on door - Ammeters, voltmeters, totalising, can be mounted on XL³ 800 and XL³ 4000 curved doors
  • Totalising hour counters (48 x 48) - One - piece device - IP 40 - Front mounting on enclosure or cabinet doors - Synchronous motor operation (operation indicator) - For counting the operating hours of an electrical machine or device, with no reset - Supplied with cover frame (55 x 55 mm) (for round cut - out) and Fixing Accessories - Connection : 2 x 1.5 mm² - 200 to 240 V~ - 50 Hz

Technical characteristics

Mounting method Front mounting
Model Analogue
Count area 99999.99 h
Reset function None
Operation indication Yes
Number of digits 7
Input voltage (Min-Max) 200-240 V
Voltage type AC
Frequency input voltage (Min-Max) 50-50 Hz
Type of drive Mains synchronous
Width 48 mm
Height 48 mm
Built-in depth 32 mm
Front plate width 48.5 mm
Front plate height 55 mm
Diameter panel opening 55 mm
Degree of protection (IP) IP40
Depth 38 mm
Operating / setting temperature (Min-Max) -25-80 °C

Documentation

1 document
RoHS DIRECTIVE
1 document
3D Autocad
049552.dwg dwg (0.09 Mo)
1 document
Catalogue Commercial Page
ex223001_0130.pdf pdf (0.06 Mo)
