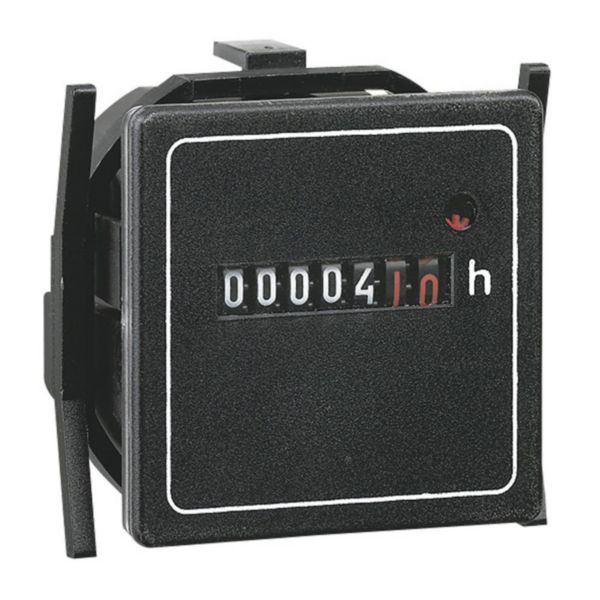

Hour counter - IP 40 - 110 to 120 V~ - 50 Hz

Name: Hour counter - IP 40 - 110 to 120 V~ - 50 Hz
SKU: 049553

LEGRAND

REF. 049553 EAN. 3245060495534

Compare You can only compare 4 products, you must remove 1 to add this one

Electrical energy metering on door - Ammeters, voltmeters, totalising, can be mounted on XL³ 800 and XL³ 4000 curved doors
Totalising hour counters (48 x 48) - One - piece device - IP 40 - Front mounting on enclosure or cabinet doors - Synchronous motor operation (operation indicator) - For counting the operating hours of an electrical machine or device, with no reset - Supplied with cover frame (55 x 55 mm) (for round cut - out) and Fixing Accessories - Connection : 2 x 1.5 mm² - 110 to 120 V~ - 50 Hz

Width	48 mm
Height	48 mm
Built-in depth	32 mm
Front plate width	48.5 mm
Front plate height	55 mm
Diameter panel opening	55 mm
Degree of protection (IP)	IP40
Depth	38 mm
Operating / setting temperature	-25-80 °C

1 document

Select all

Catalogue Commercial Page

ex223001_0130.pdf pdf (0.06 Mo)

1 document

Select all

3D Autocad

049552.dwg dwg (0.09 Mo)
