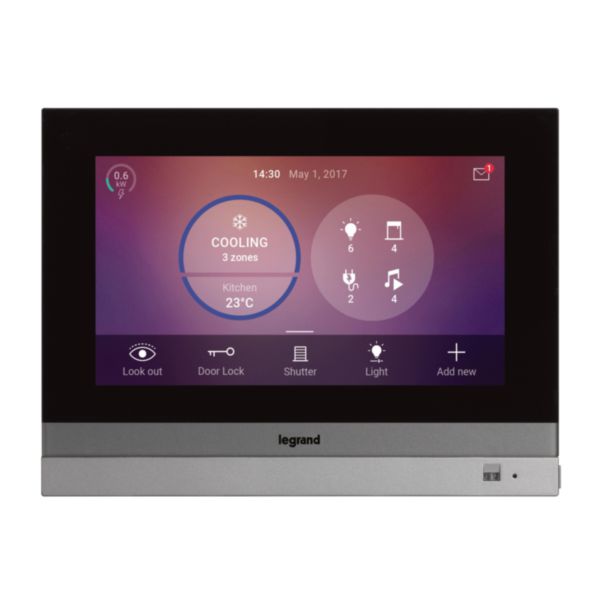

Name: HOMETOUCH MyHOME_Up BUS/SCS 7 inches
SKU: 067259

HOMETOUCH MyHOME_Up BUS/SCS 7 inches

My Home Up Legrand

HOMETOUCH MyHOME_Up BUS/SCS 7 inches

REF. 067259 EAN. 3414971201989

Compare You can only compare 4 products, you must remove 1 to add this one

It is ready to be used once installed, it doesn't require any configuration tools
It guarantees the management of video door entry functions using the app Door Entry (locally and from remote)
Thanks to a simple graphical user interface it guarantees to end user the overview and control of MyHOME_Up system (lights, shutters, temperature, music, etc..) and the personalization of controlled functions
It could be installed with a flush mounting box guaranteeing a tickness of 7,2 mm
Possibility to install it also in existing boxes

Ready to use as soon as installed, without configuration tools. Flush mounting installation to guarantee minimum tickness (7,2 mm) and also compatibility with existing boxes.

A unique device that works as connected video internal unit and home system control
No configuration needed to make it working
Design thin and suitable for any installation context

Bus system KNX	No
Bus system KNX-RF (Radio Frequency)	No
Bus system radio frequency	No
Bus system LON	No
Bus system Powernet	Yes
Other bus systems	Other
Radio frequency bidirectional	No
Assembly arrangement	Control element
Model	Control tableau
Mounting method	Flush-mounted
Display	LED
Touch function	Yes
Additional interfaces	Ethernet
With bus connection	Yes
Material	Glass
Material quality	Other
Colour	Black
RAL-number (similar)	9005
Degree of protection (IP)	Other
Width	196 mm
Height	147 mm

Depth	25 mm
Built-in depth	7 mm
degree of impact strength (IK)	Not applicable
Operating / setting temperature	5-35 °C
Storage temperature	-10-70 °C
Hands free	Yes
Loudness setting	Yes
Addressable	Yes
Remote opening of gate / Electric door opener	Yes
Screen resolution	852x480
Screen brightness setting	Yes
Screen contrast setting	Yes
Contains Batteries and/or Accumulator	No
Connected object	Yes
Operating method	SCS , Wifi network 2.4G
Application store for download	Google Play Store , Mac Apple Store
Programmable	Yes
Connectable by Internet box	Yes
Application name	Door Entry
Product use function	Control & command systems
Software Update Duration (years)	3
