HDMI audio video extender signals up to 60m

Mosaic LEGRAND

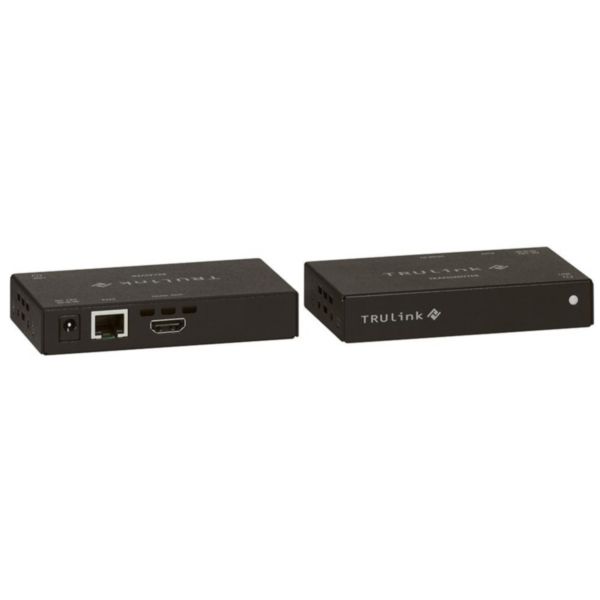

HDMI audio video extender signals up to 60m

REF. 051738 EAN. 3414970764836

This HDMI audio video extender kit allows you to link HDMI terminals up to 60m. It contains one transmitter, one receiver and power supplies. The transmitter and receiver must be linked by an RJ 45/RJ 45 F/UTP cord (not supplied).

Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

This HDMI audio video extender kit allows you to link HDMI terminals up to 60m. It contains one transmitter, one receiver and power supplies. The transmitter and receiver must be linked by an RJ 45/RJ 45 F/UTP cord (not supplied).

Product characteristics
  • Compatible with 4K, 3D, EDID and HDCP
  • Distance between transmitter and receiver up to 60m
  • Support of IR control allows a device to be remotely controlled
  • Certified HDBaseT
Recommendation / Restriction
  • Maximum cable length 60m.

The product's benefits

Installation
  • Integrated fastening system within the product. Cable easier to install in small diameter ducts.
Usage
  • Ensures the quality of the HDMI signal on a long distance transmission. Good scalability in case of upgrading the resolution of the terminal. No need to change the cable.

Technical characteristics

Assembly arrangement Basic element with complete housing
Utilization HDMI
Support ring No
With hinged lid No
Imprintable label Without indication field
With imprint No
Mounting method Surface mounted
Material Metal
Material quality Other
Antimicrobial treatment No
Surface finishing Matt
Colour Black
Transparent No
Type of fastening Other
Luster terminal No
Device width 94 mm
Device height 25 mm
Device depth 69 mm
Operating / setting temperature (Min-Max) 5-45 °C

Documentation

3 documents
Instruction Use
LE09125AB.pdf pdf (1.08 Mo)
Technical Sheet
S000105961EN-00.pdf pdf (0.85 Mo)
Technical Sheet
S000105961FR-00.pdf pdf (0.84 Mo)
3 documents
Catalogue Commercial Page
ex223001_1193.pdf pdf (0.15 Mo)
Catalogue Commercial Page
ex223001_0583.pdf pdf (0.11 Mo)
Catalogue Commercial Page
ex223001_1006.pdf pdf (0.13 Mo)
